2004 - 08 F150 MKII Heads Up Display (HUD) Windshield Display System

91 reviews Video & Instructions


New MKII model now shipping! MKII advancements include:

  • 50% larger speedometer display
  • 30% increase in brightness
  • 12-hour format clock (vs 24-hour clock on prior model)

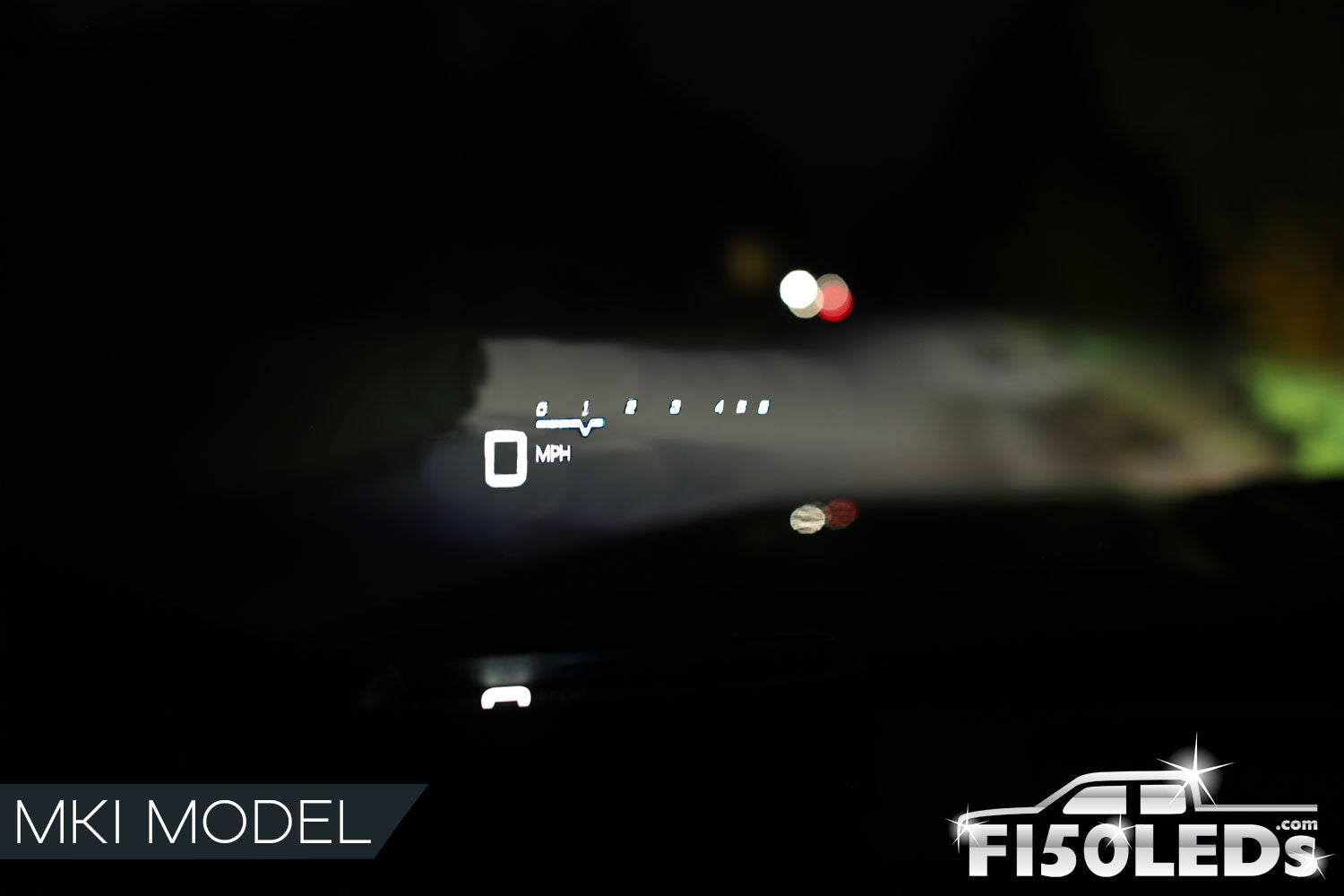

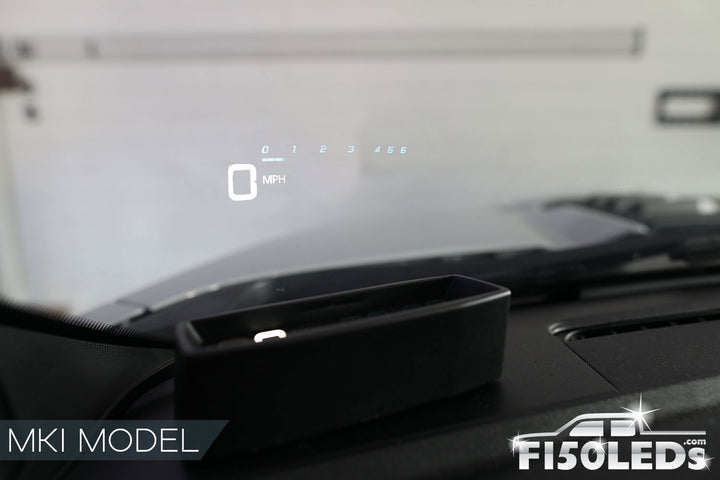

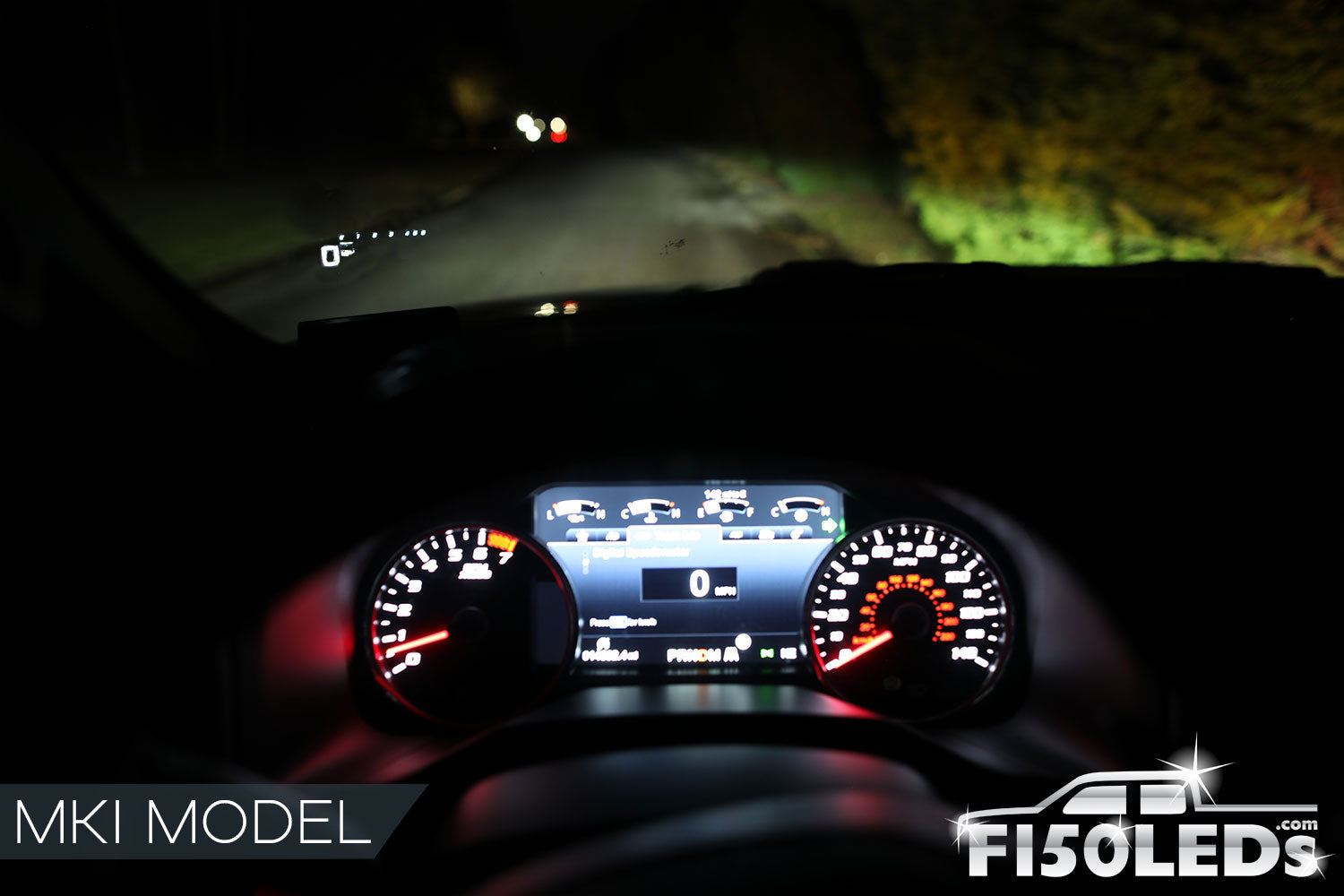

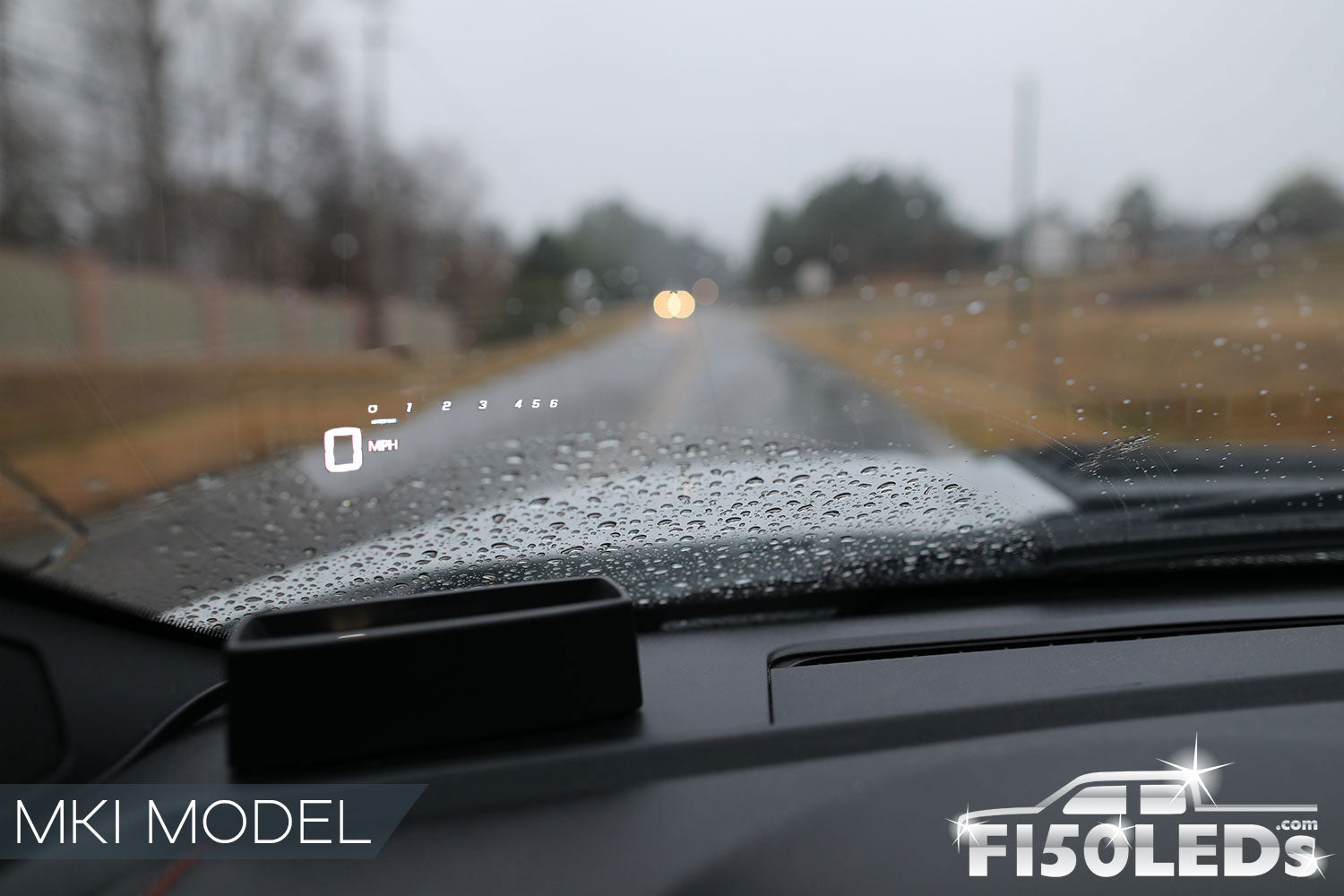

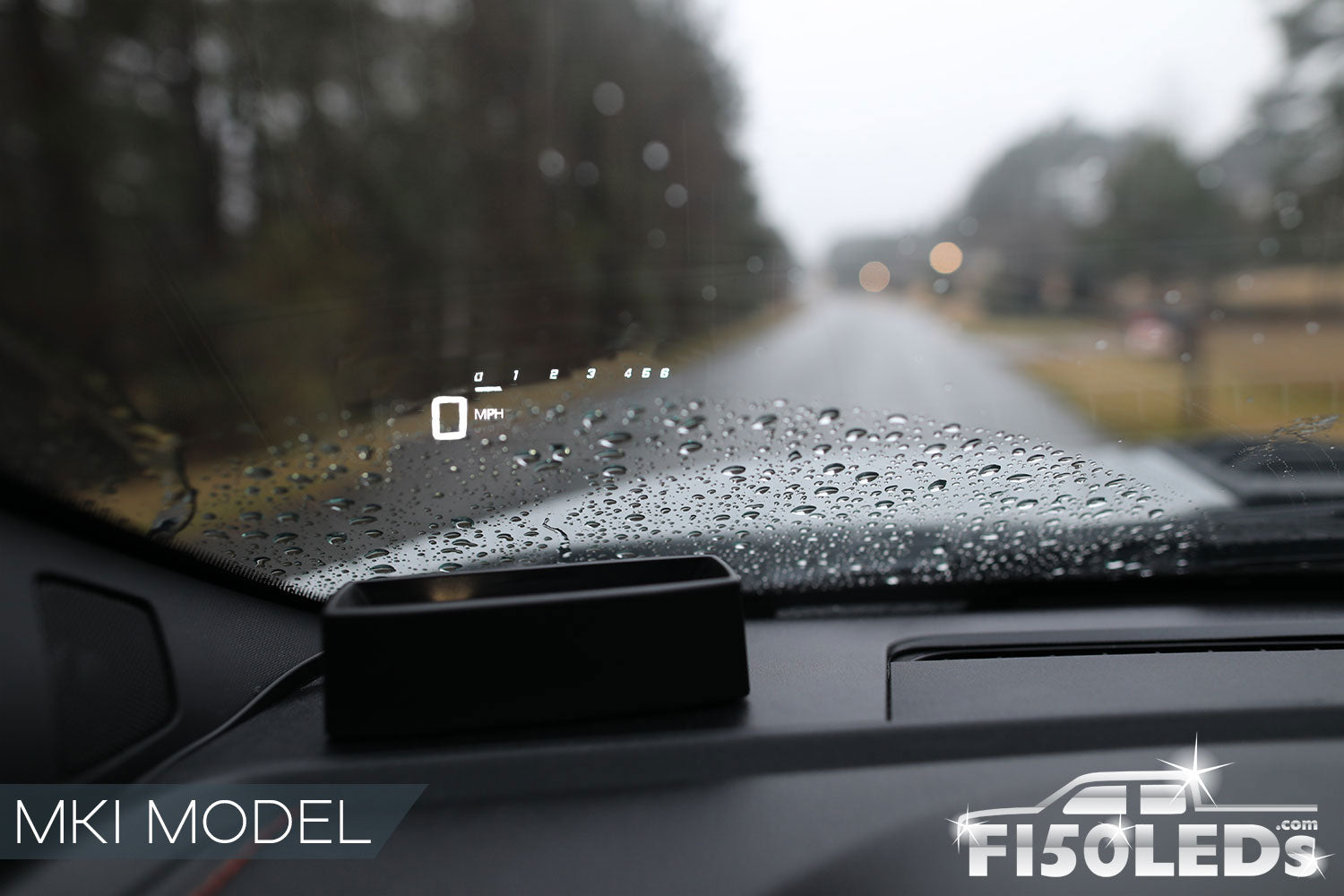

Upgrade your F150 experience today with a F150LEDs Heads Up Display (HUD) unit. These HUD units display vital information right on your windshield so you never have to take your eyes off the road.

Normally this kind of technology is a feature only seen in very expensive luxury vehicles but we are proud to offer it to our F150 family. We believe this is a product that can truly make you and your family safer. The fewer times you have to take your eyes off the road the better!

Each HUD unit is custom-tuned to work with your F150 without causing OBII port damage like cheap knockoffs. They are created with a minimalistic build designed to mimic our F150s interior and give off an 'original equipment' appearance.

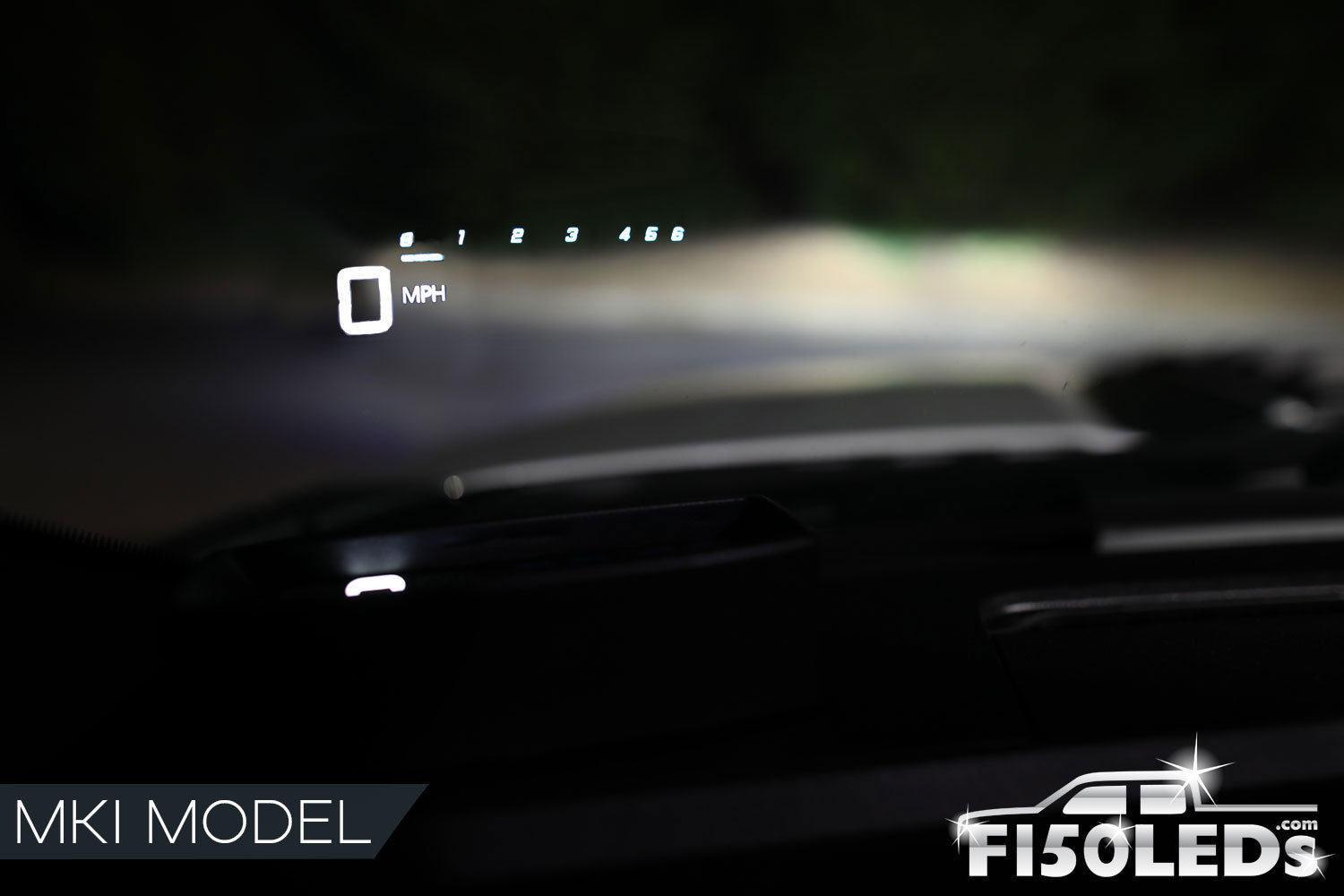

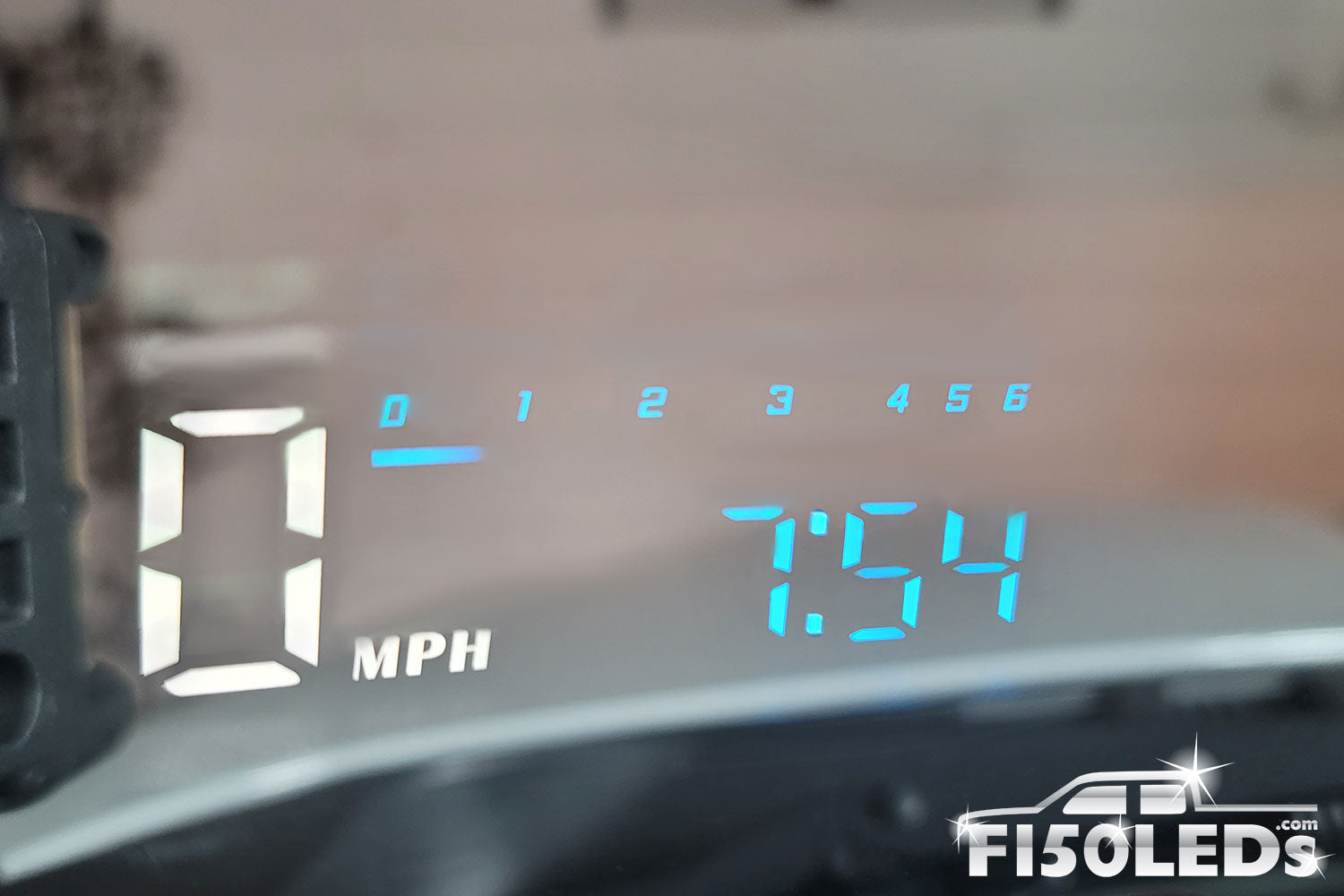

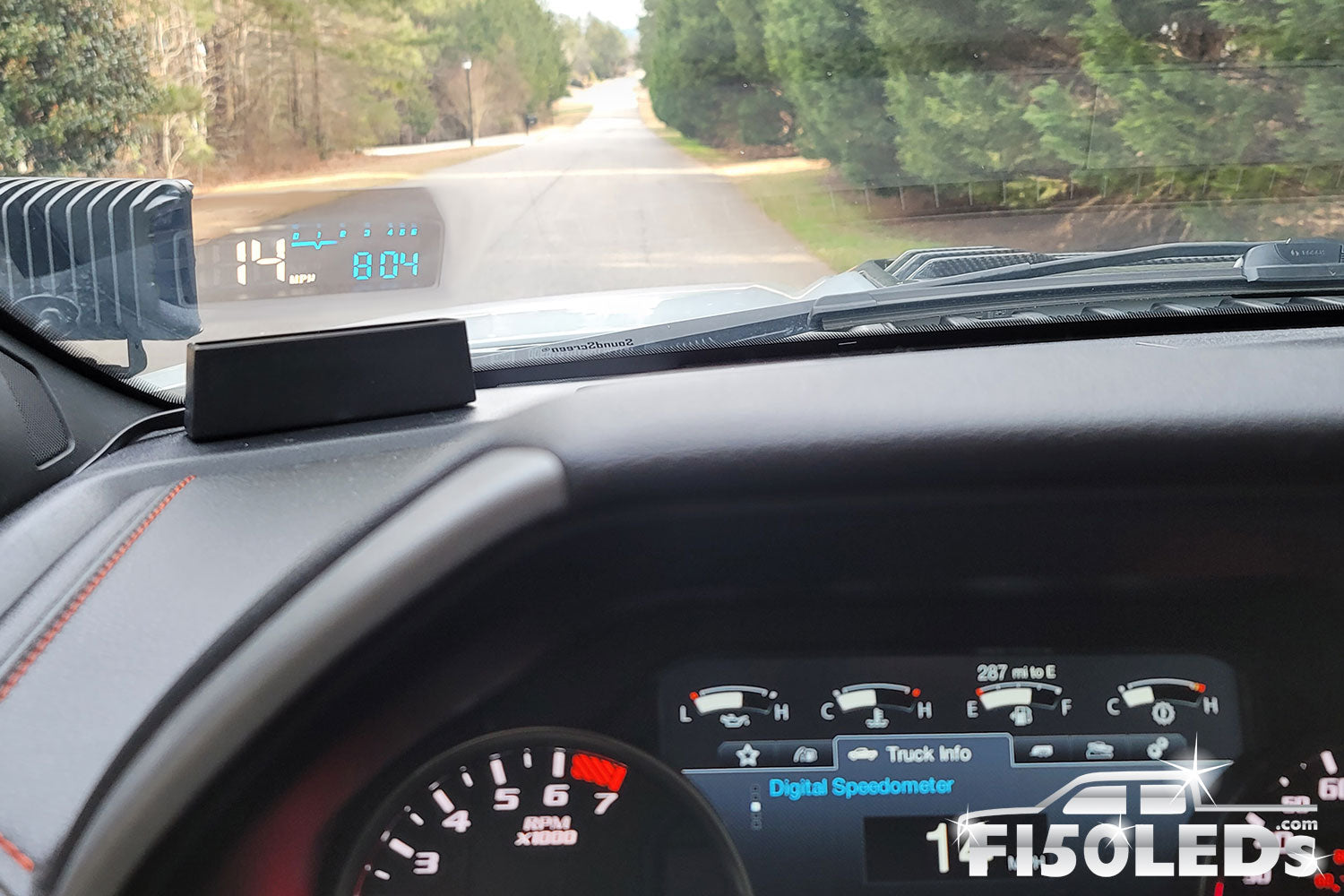

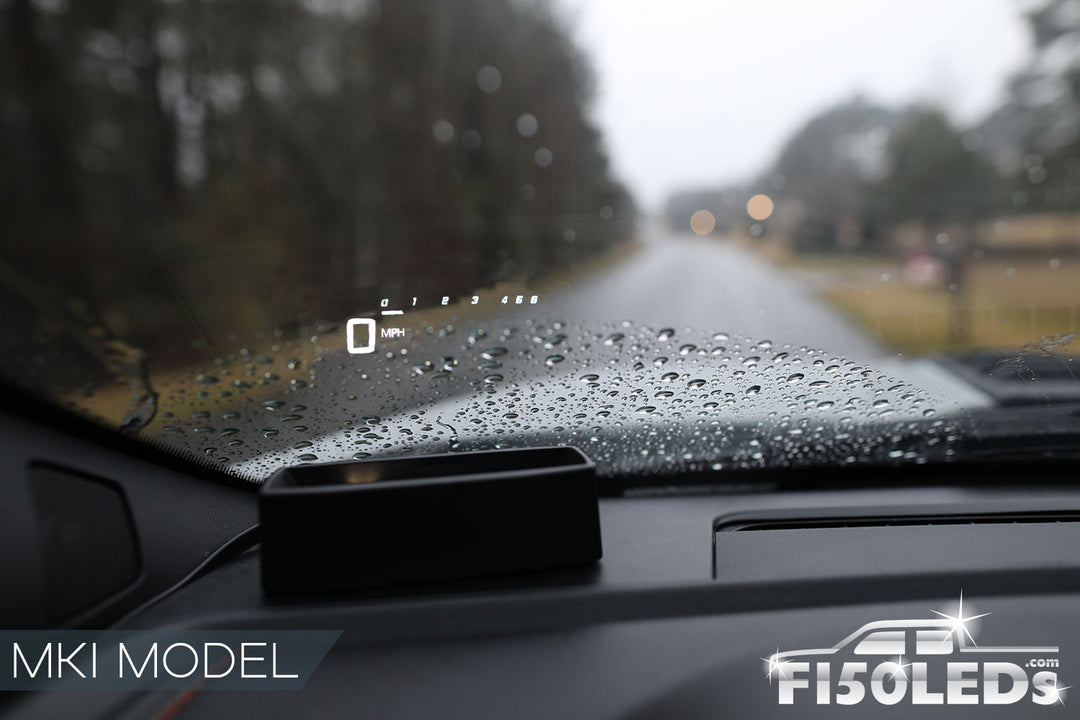

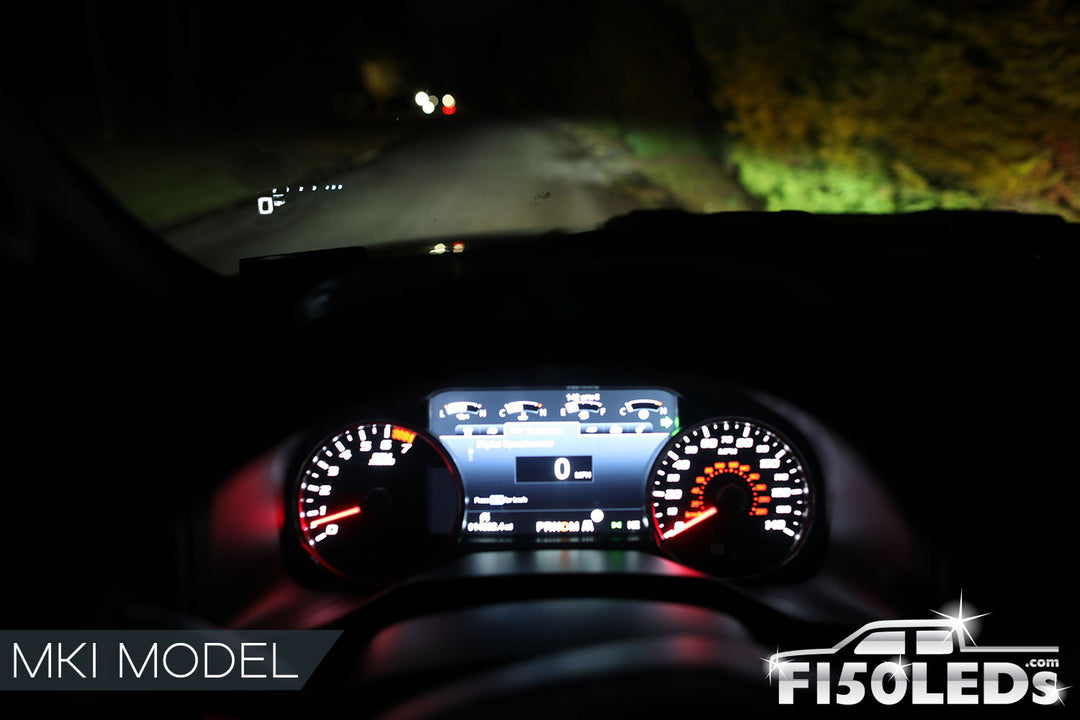

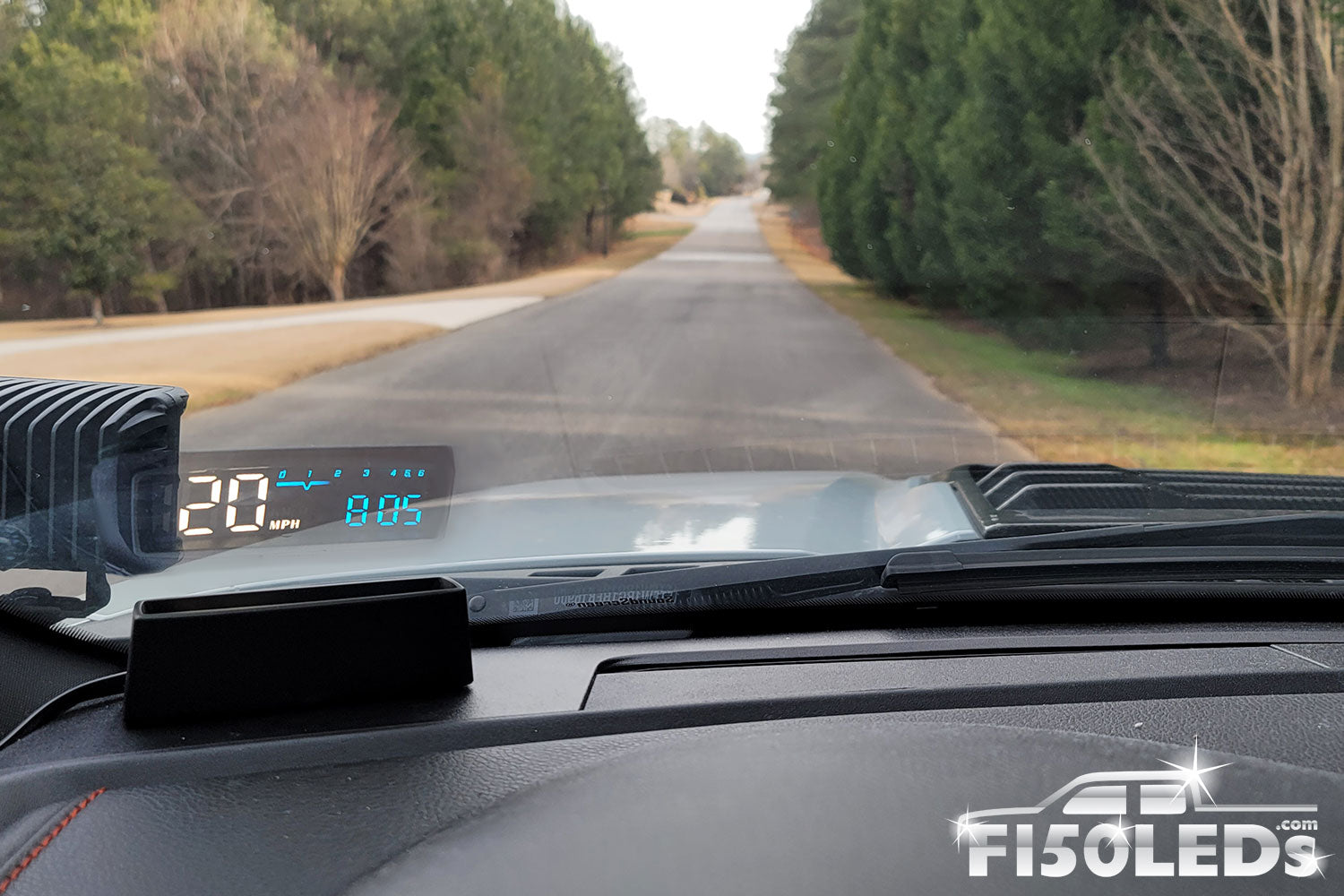

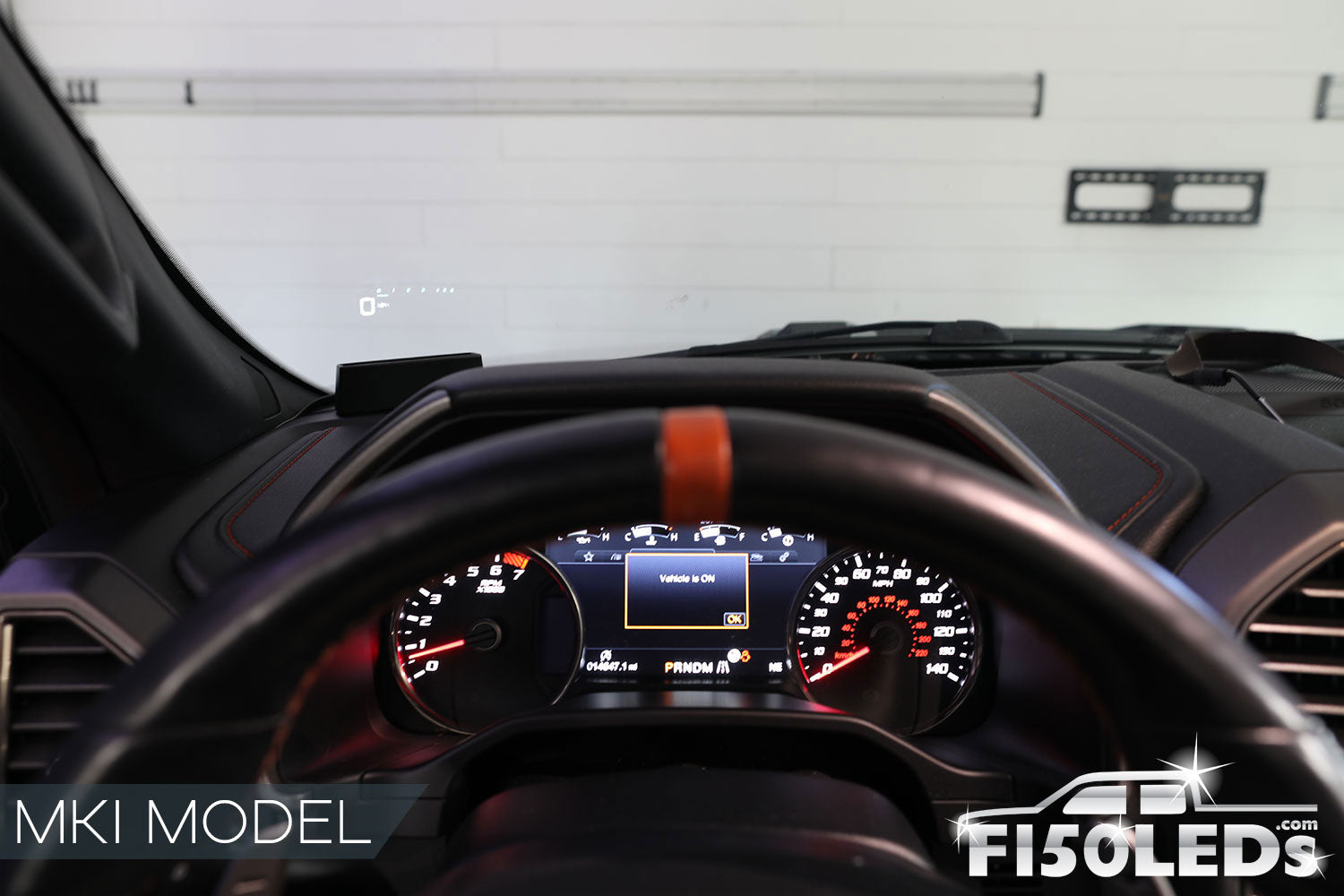

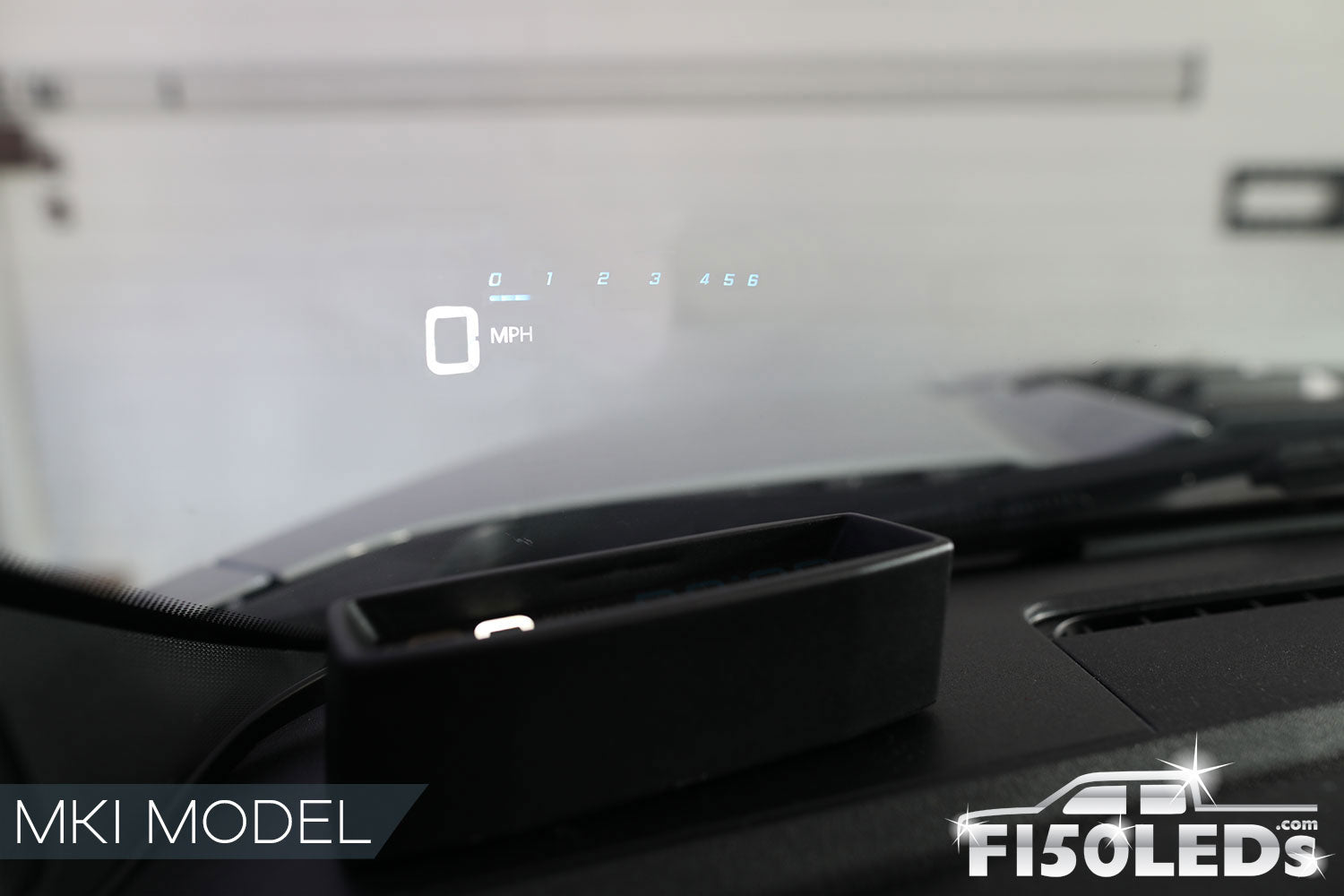

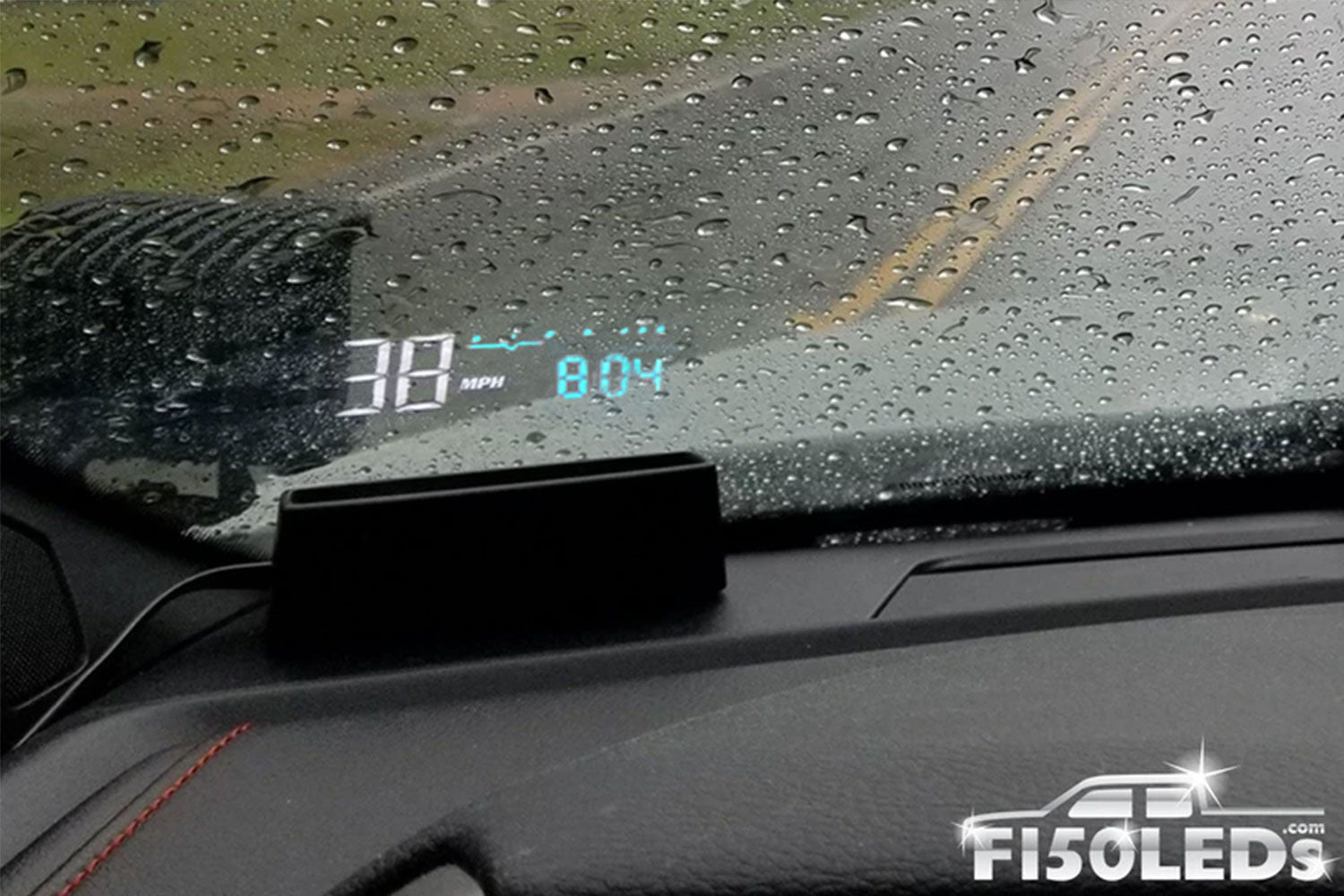

The F150LEDs HUD features ambient light sensors with self-adjusting brightness and has the ability to display speed (MPH or KPH), engine speed, the time (12hr format on MKII), engine temperature, fuel burn rate, lap times and/or voltage.

Installation time is only around 10-15 minutes and requires no wiring, drilling, etc.

Improved reaction time, safer driving, an easy install, and a sweet display make the F150LEDs HUD system a must for your F150!


  • What's Included

- Custom F150 Designed HUD Windshield Display System

- OBDII Cable

- Reflective Film (optional)

  • More Details

- Completely adjustable parameters for your F150

- Primary display features speed (MPH or KMH) and RPM readout.

- The secondary display allows the optional display of fuel burn rate, time (12hr format on MKII), engine temperature or battery voltage.

- You can display lap times on the unit

- Alarm warning can be set based on speed/rpm restrictions

California Residents - Warning: California's Proposition 65

  • Warranty

Each and every product we offer includes our Full 1-year warranty!

Video(s) / Instructions



Reviews / Community Q&A

Customer Reviews
4.8 Based on 91 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
    Pratham S.
    United States United States
    Amazing product

    Very clean and fits well with the truck. I’m having to use the reflecting screen because the sun is too bright in the mornings but with the screen it’s shows up perfectly!! 2004 - 08 F150 MKII Heads Up Display (HUD) Windshield Display System Review
    Mike L.
    United States United States
    F150 MKII HUD Overall Review

    First off, great addition to my F150. I did end up having to use the screen as I was getting ghost images. Once I put the film in place, my image was sharp and bright. Given the daily sun where I live, that was a must. Now for some overall comments. I've yet to figure out how to change the secondary displays. Default is time, and I'd like to show fuel burn. We have so many variables to calibrate, but I've yet to find instructions on how to change the display itself. And, I thought I'd read where we can show 4 items on the display. Although great box, design team would greatly help the user by moving the plug port on the box to the side. The cable is still, and coming directly into the side would be more advantageous. At same time, once you use the double sided tape and stick it to the dash, the button position is against the windshield and making fine tuning adjustments is fun at best.... relocate the button to the back, and I think that will resolve this issue. It did take me 4 tries to dial in the speed. Set the truck on cruise control, drove on level ground, and finally got it dialed in.

    Jimmie W.
    United States United States

    I bought it mainly for the speedo and the clock. It works great and calibration was a breeze. The team were very responsive to my questions. It flows with my superduty very well.

    Mark T.
    United States United States
    HUD display

    I love seeing my speed and rpm’s, only wished it showed real temps in actual degrees. Great product and easy to install, minor adjustments to have it read the speed where you want it. 2004 - 08 F150 MKII Heads Up Display (HUD) Windshield Display System Review
    Adam P.
    United States United States
    Absolutely love it

    I absolutely love this thing! It is so easy to install. The video on the install helps a lot. I definitely recommend using the screen they have added to prevent making you see double. Overall I love it and highly would recommend it
