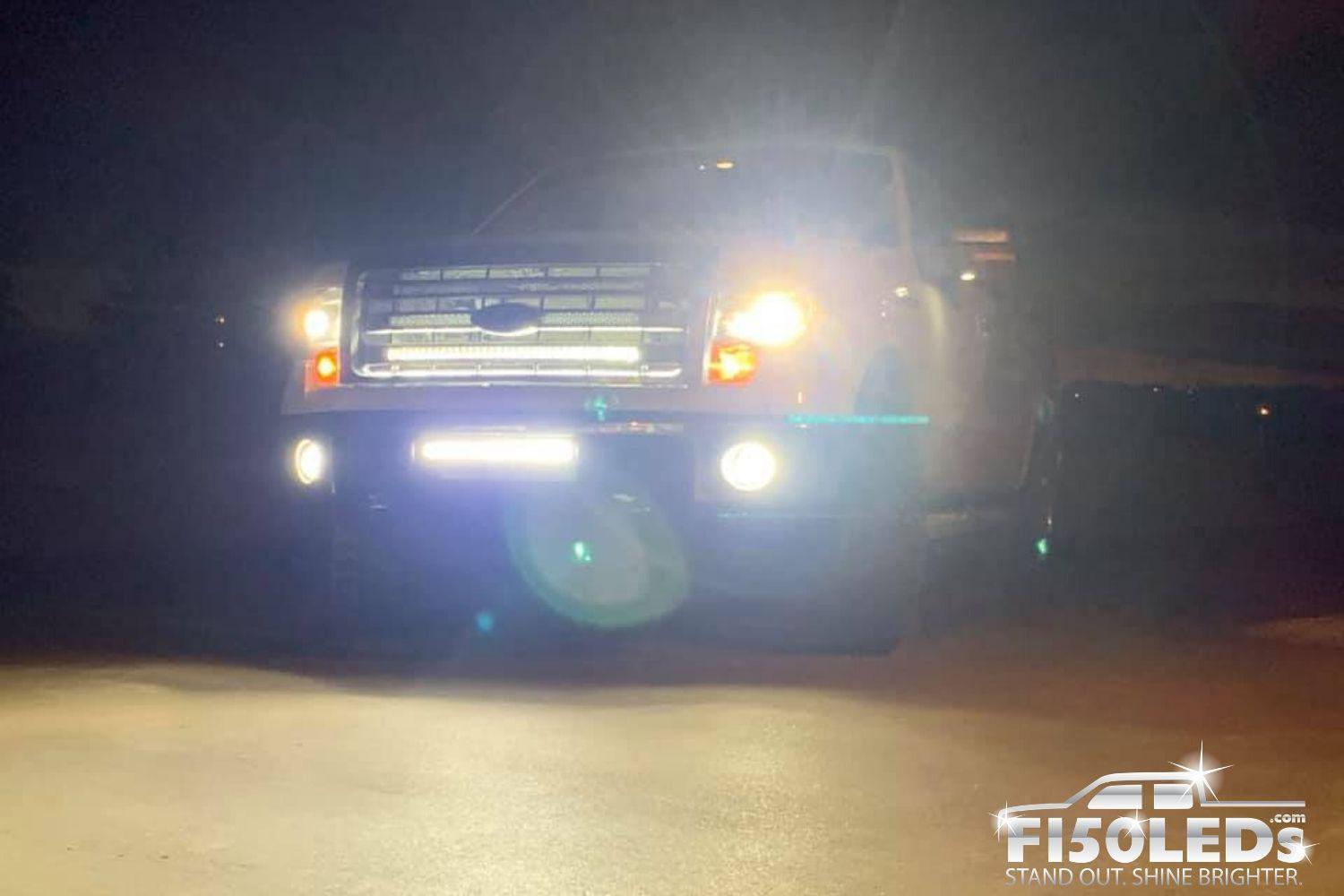

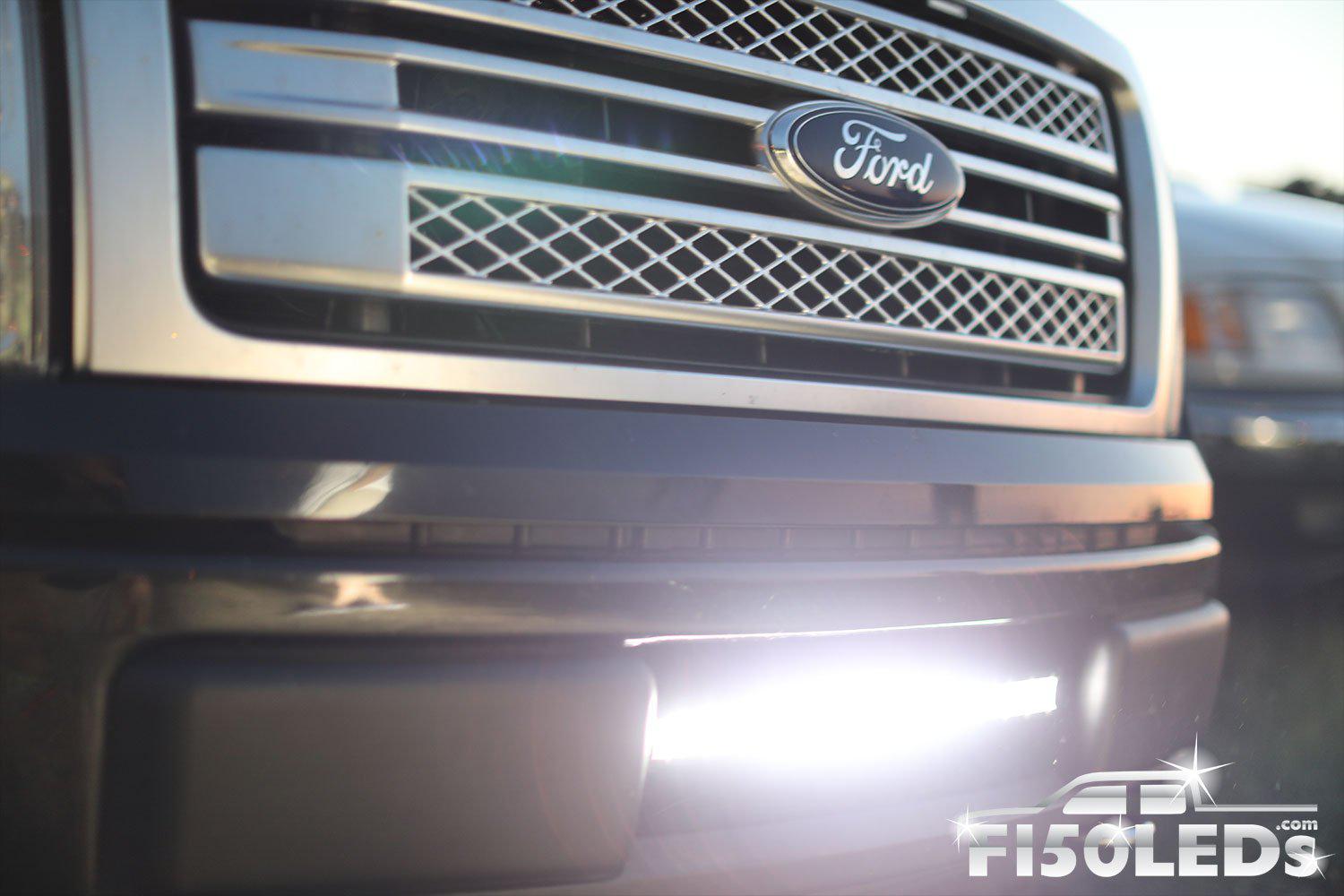

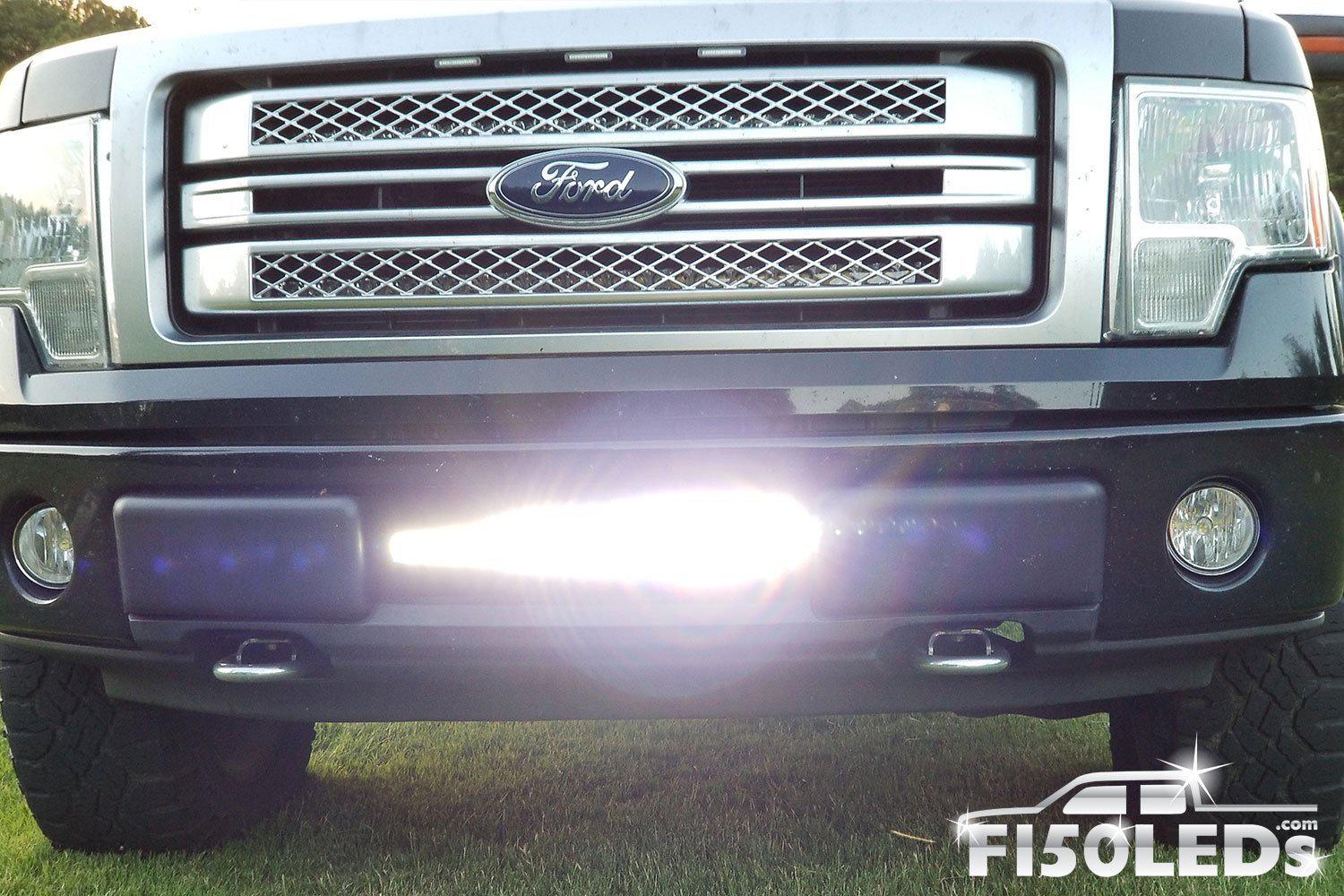

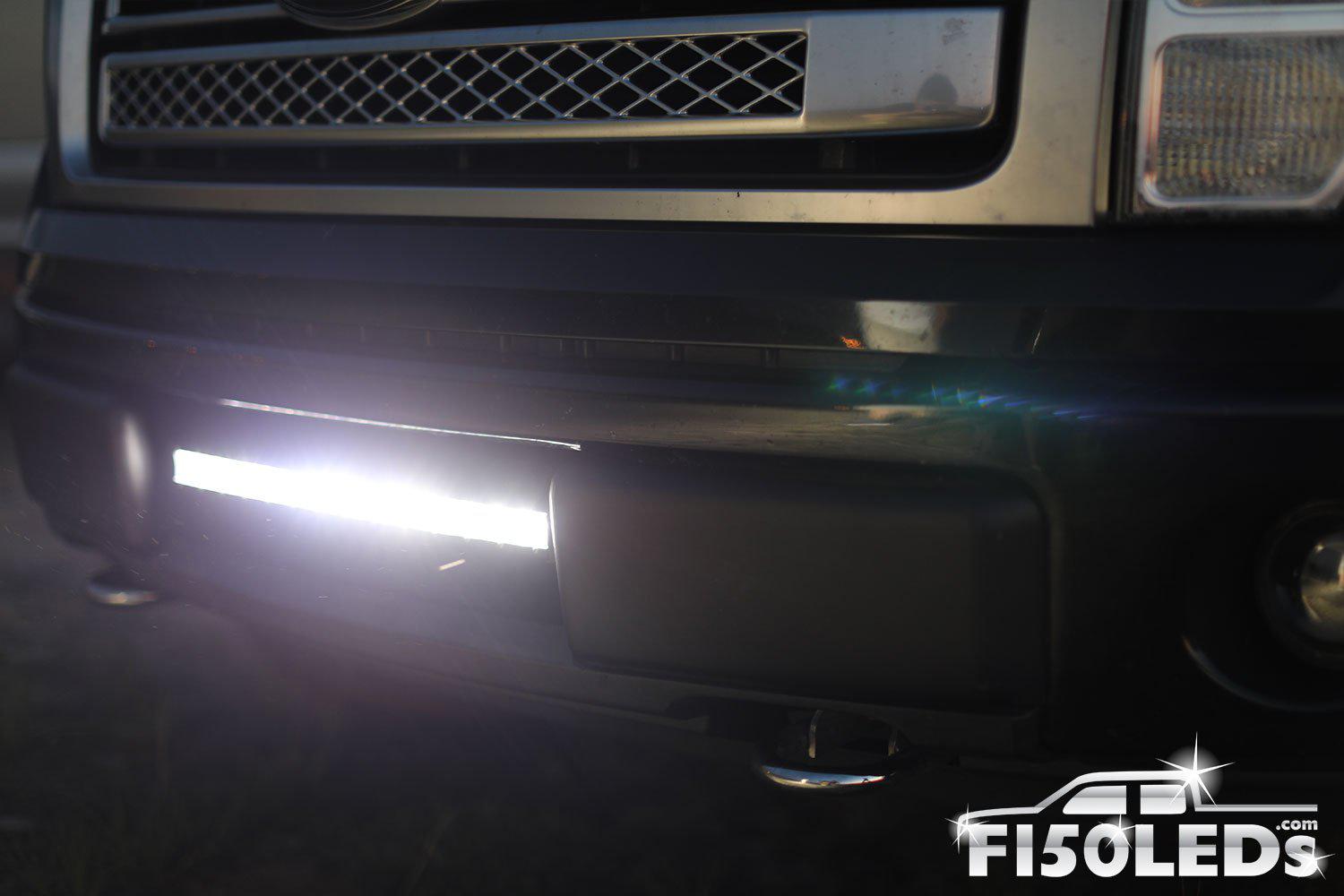

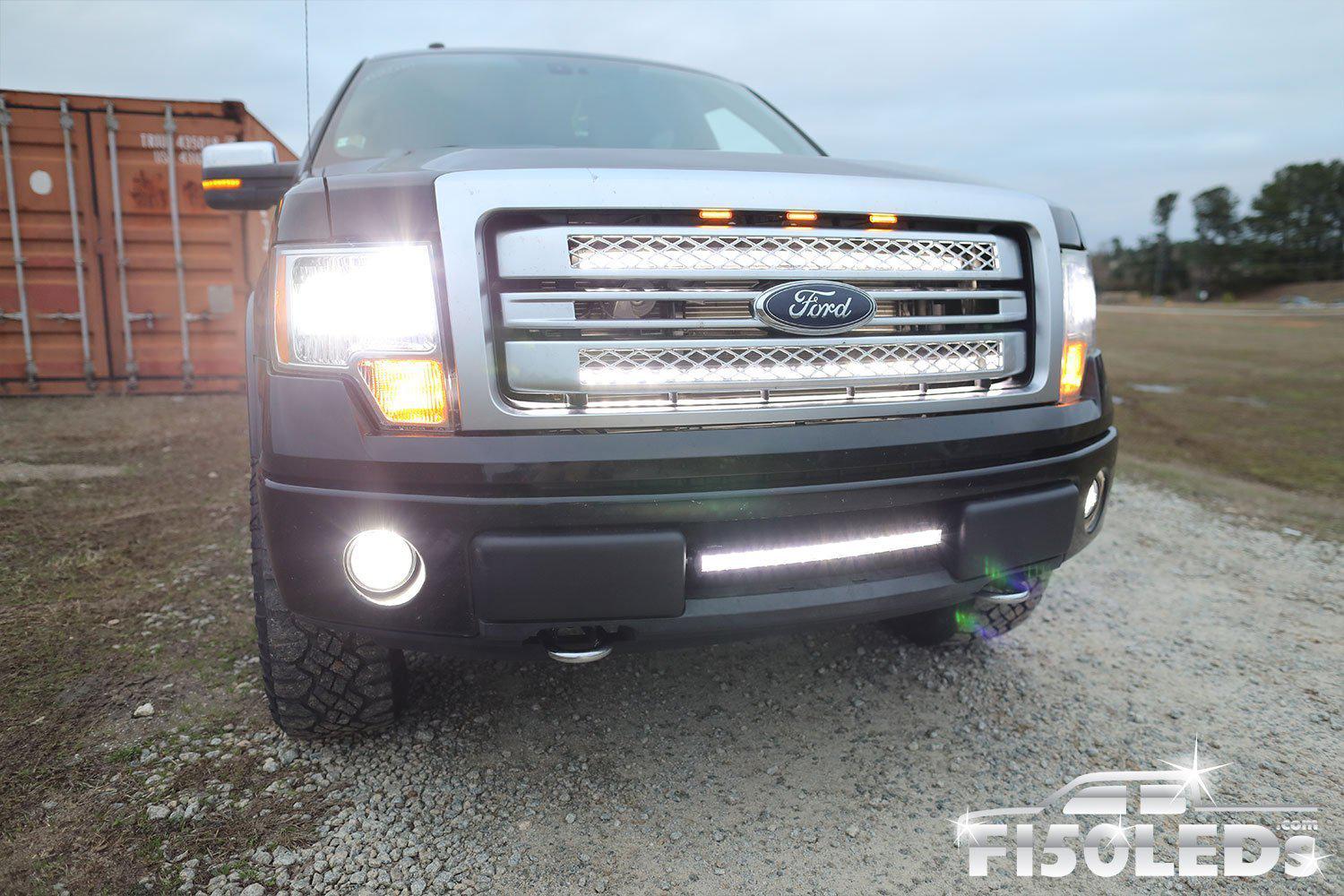

2009-14 F150 20" PALADIN 90W Curved Lower Intake LED Bar

18

Harness Type

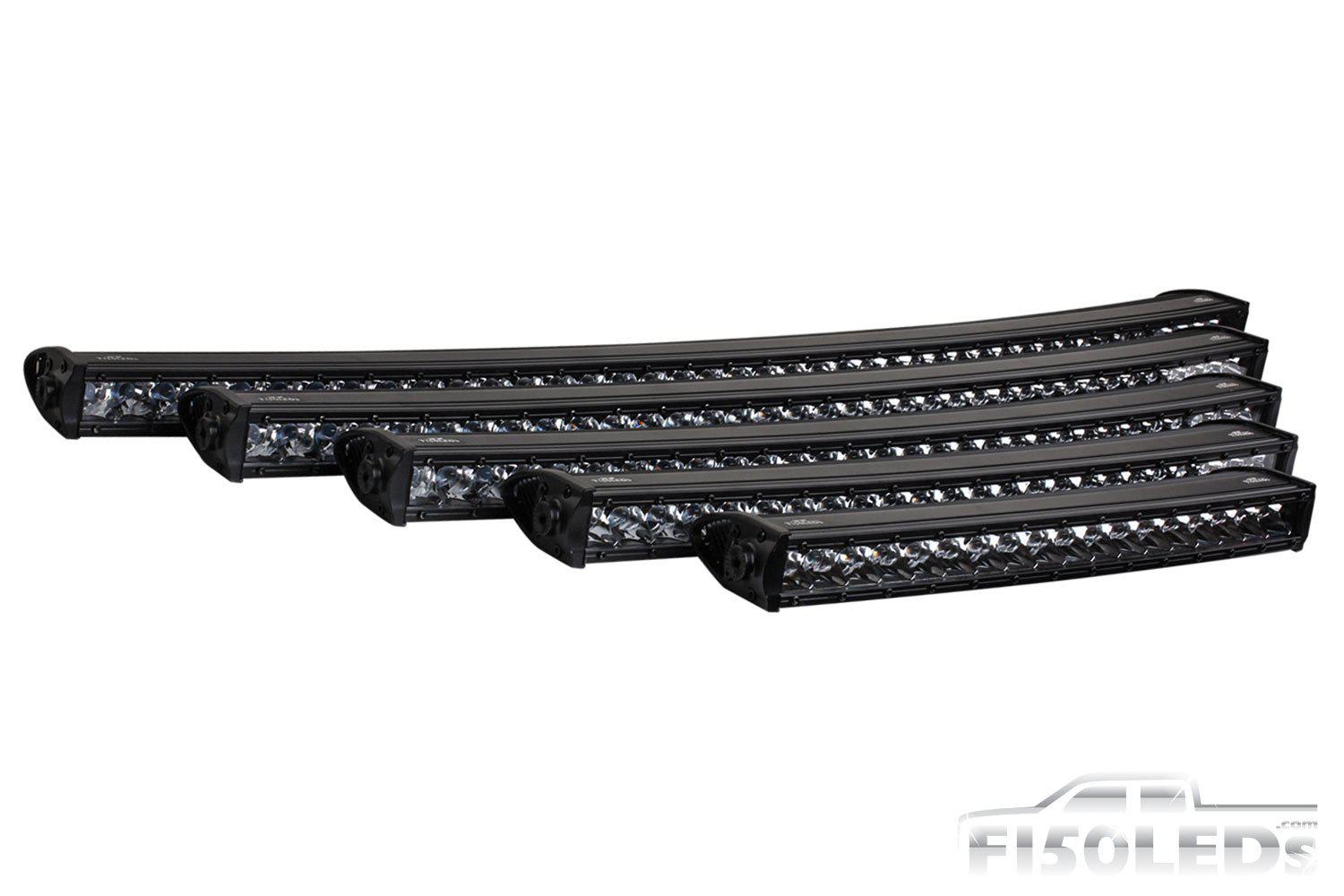

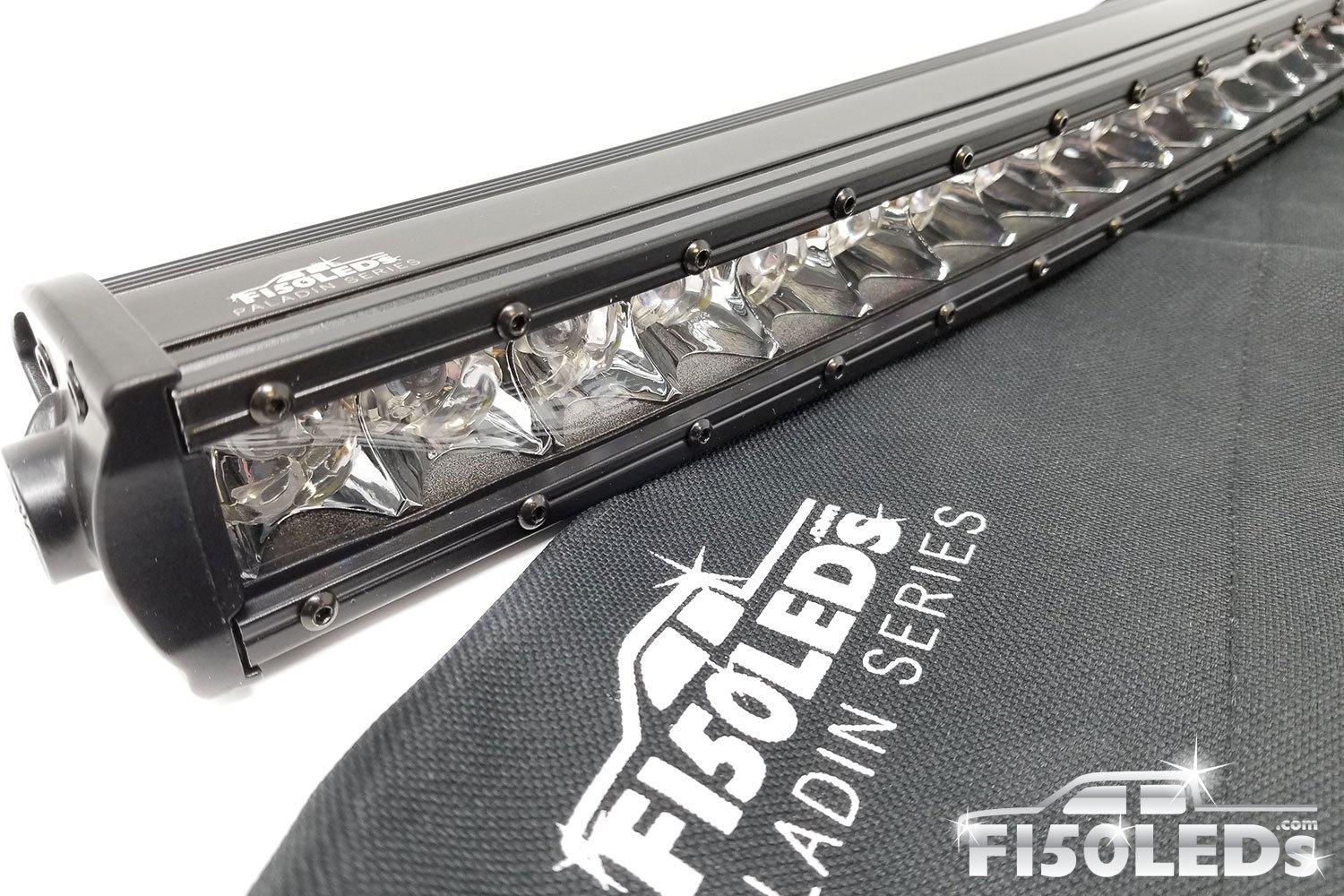

Our next generation of CREE XTE 5W high performance LED bars are almost here! Our Paladin series LED bars utilize 5W CREE XTE LEDs, HPO (Hyper Paladin Optics), a combination of both flood and spot beams, IP68 weather proofing, slim line curved design, black out hardware, custom mounting brackets and matching IP68 heavy duty harness kits.

Everything you need to stand out & shine brighter with your custom LED bar is included. Install is very easy and we guarantee you will be impressed!

  • What's Included

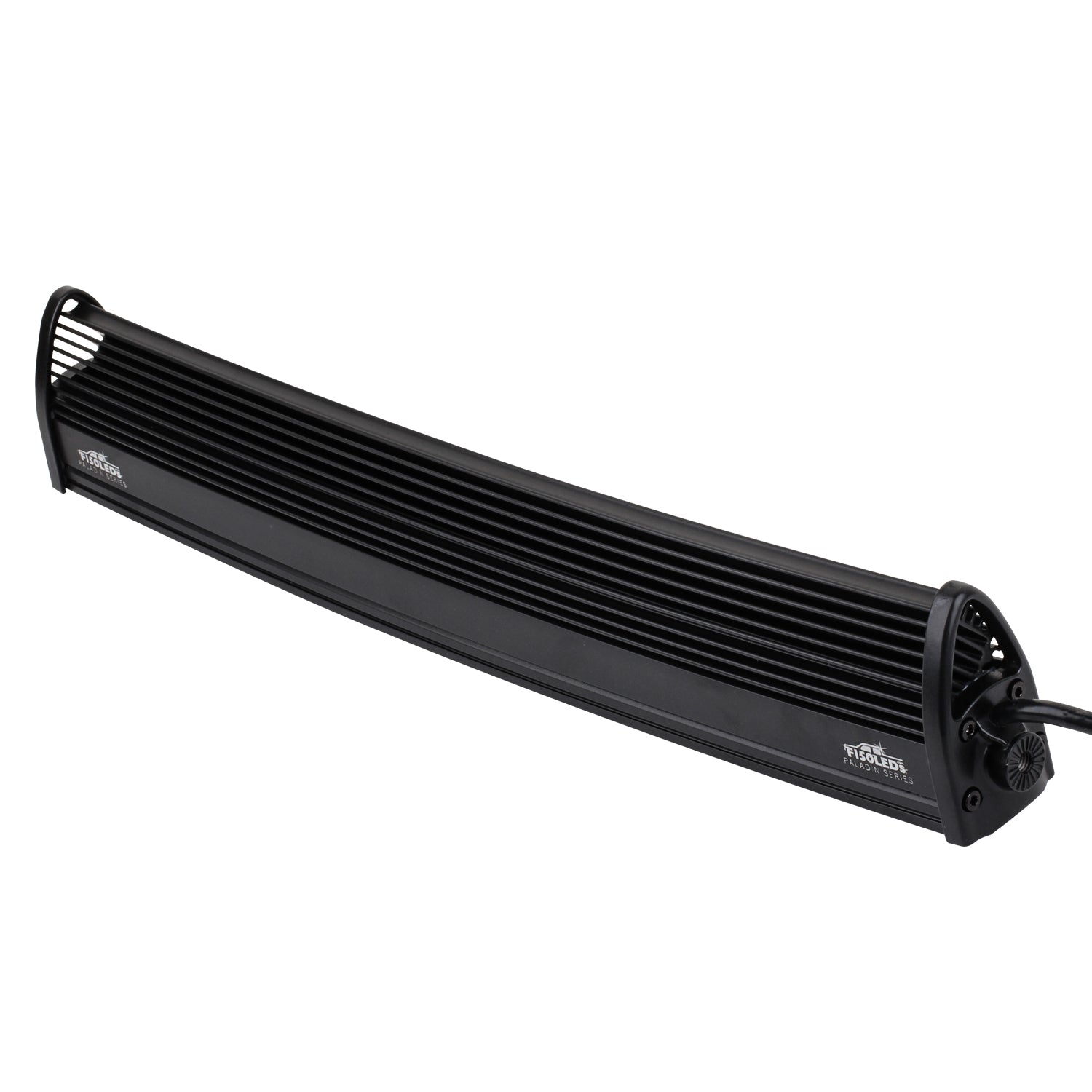

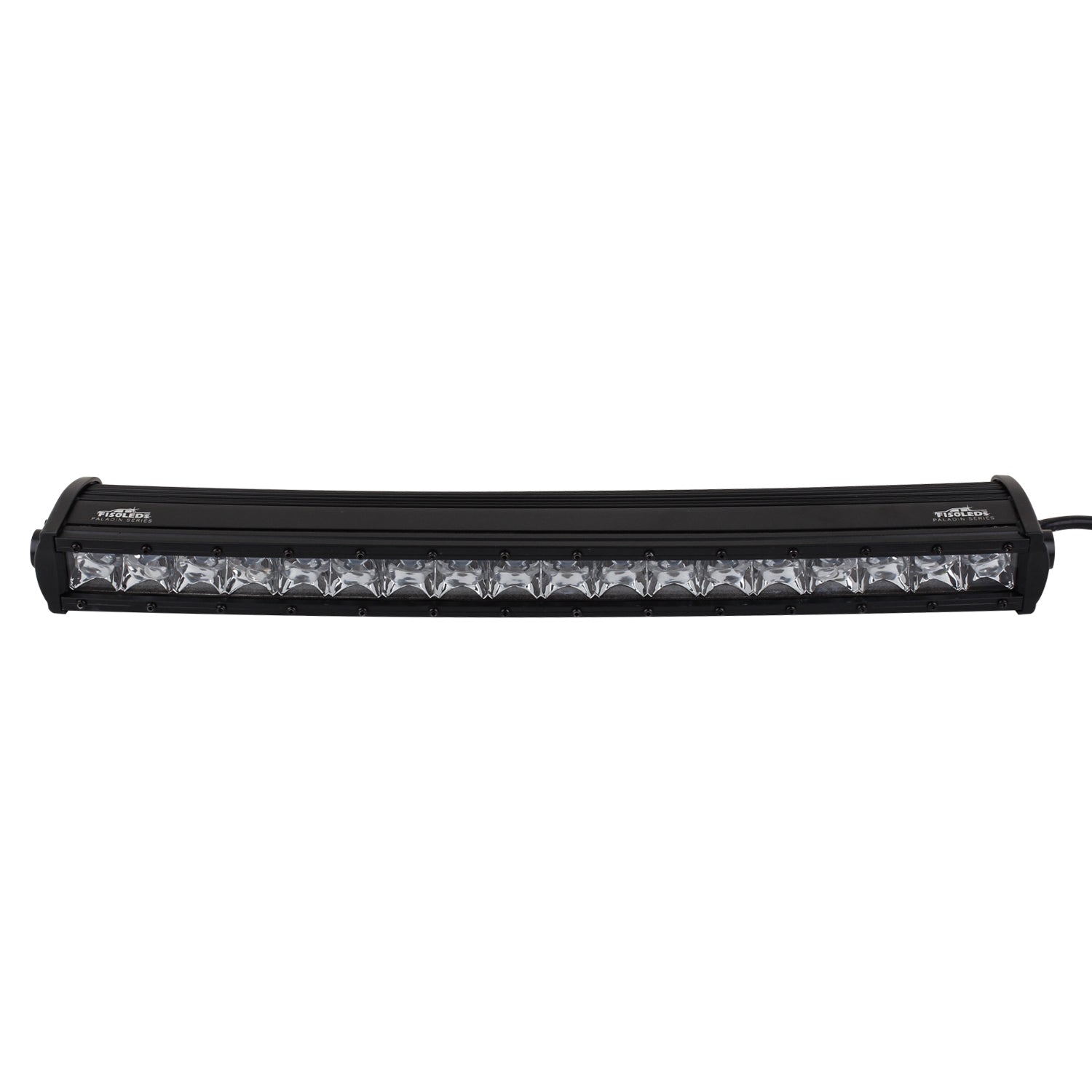

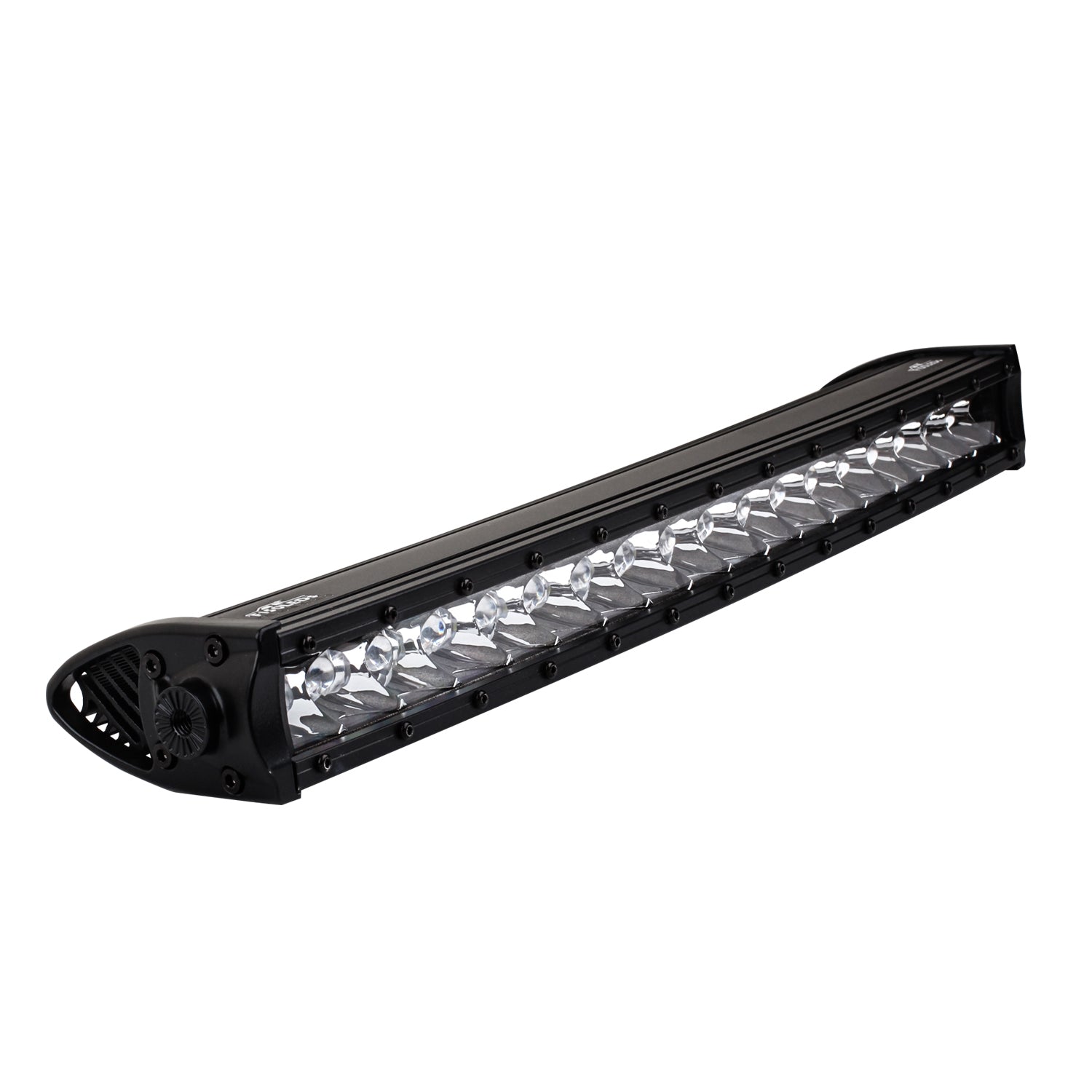

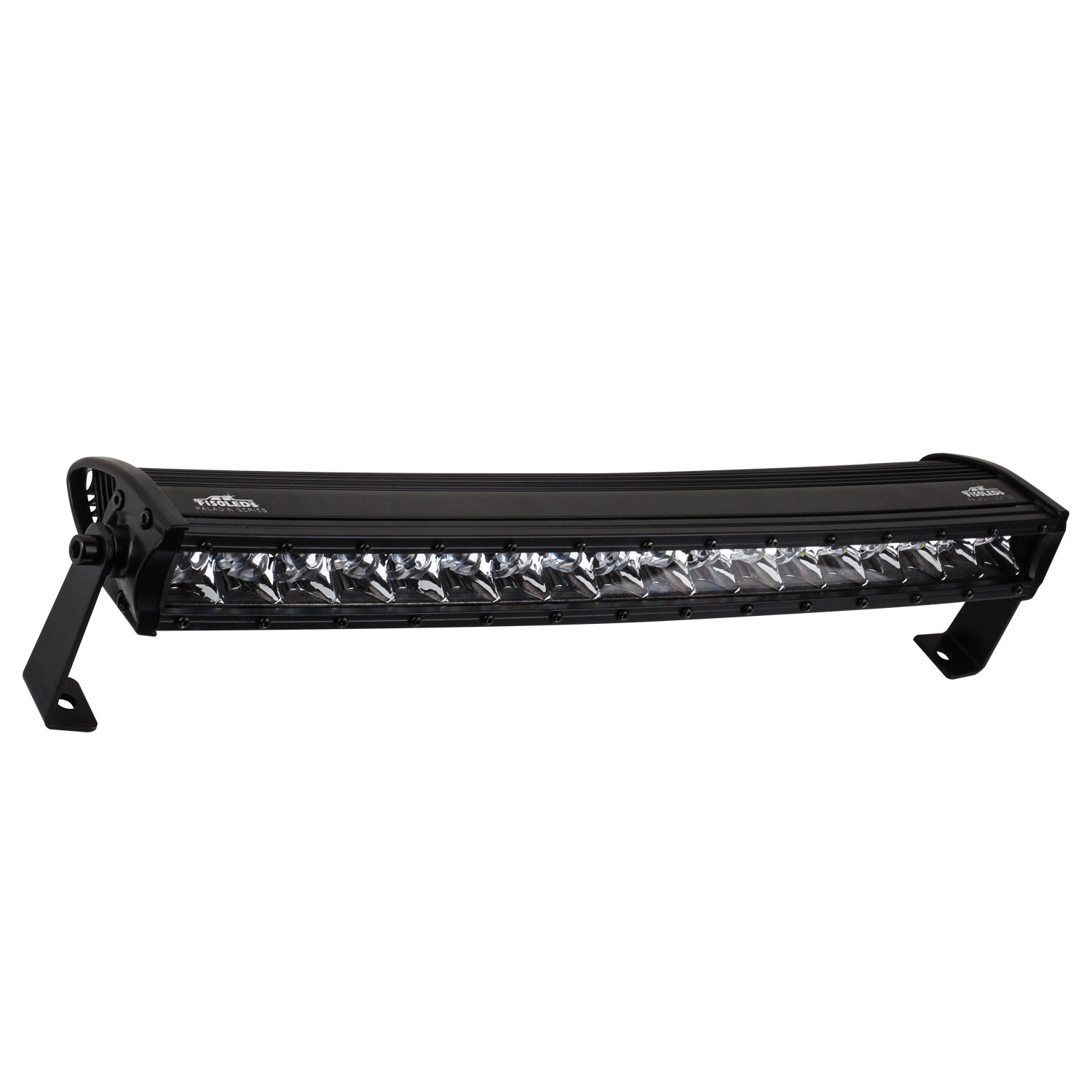

- 90W 20" Curved Paladin series CREE LED bar

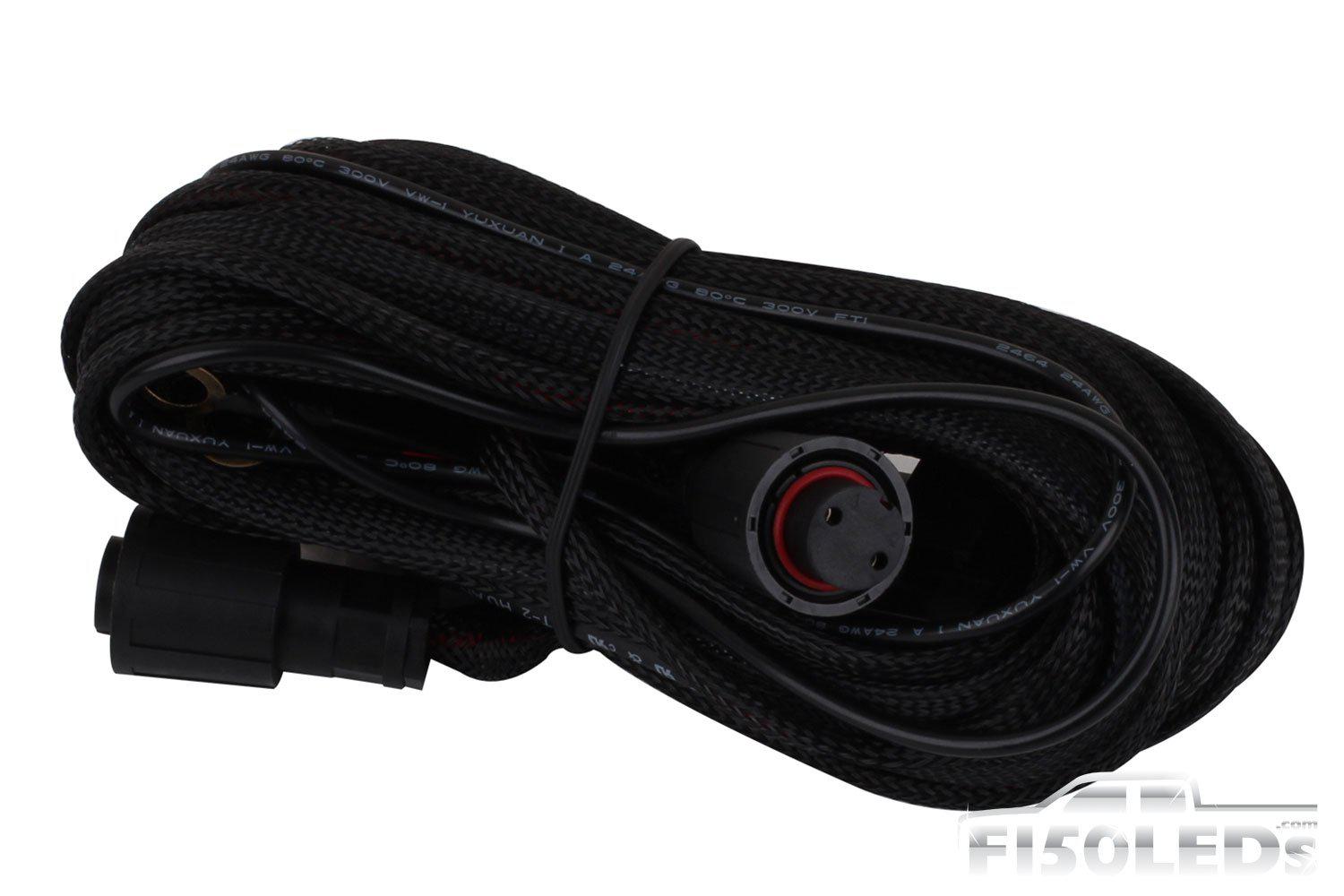

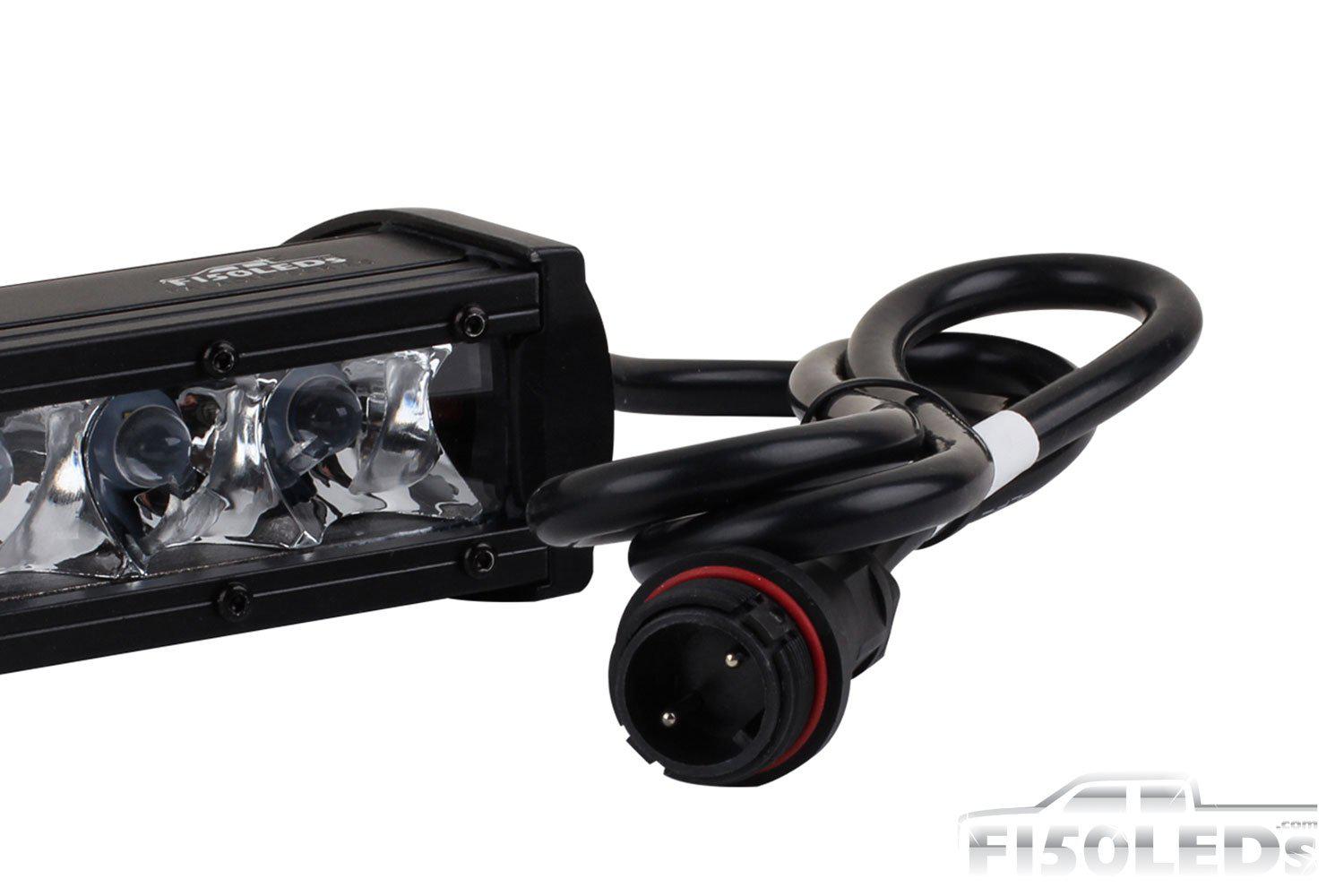

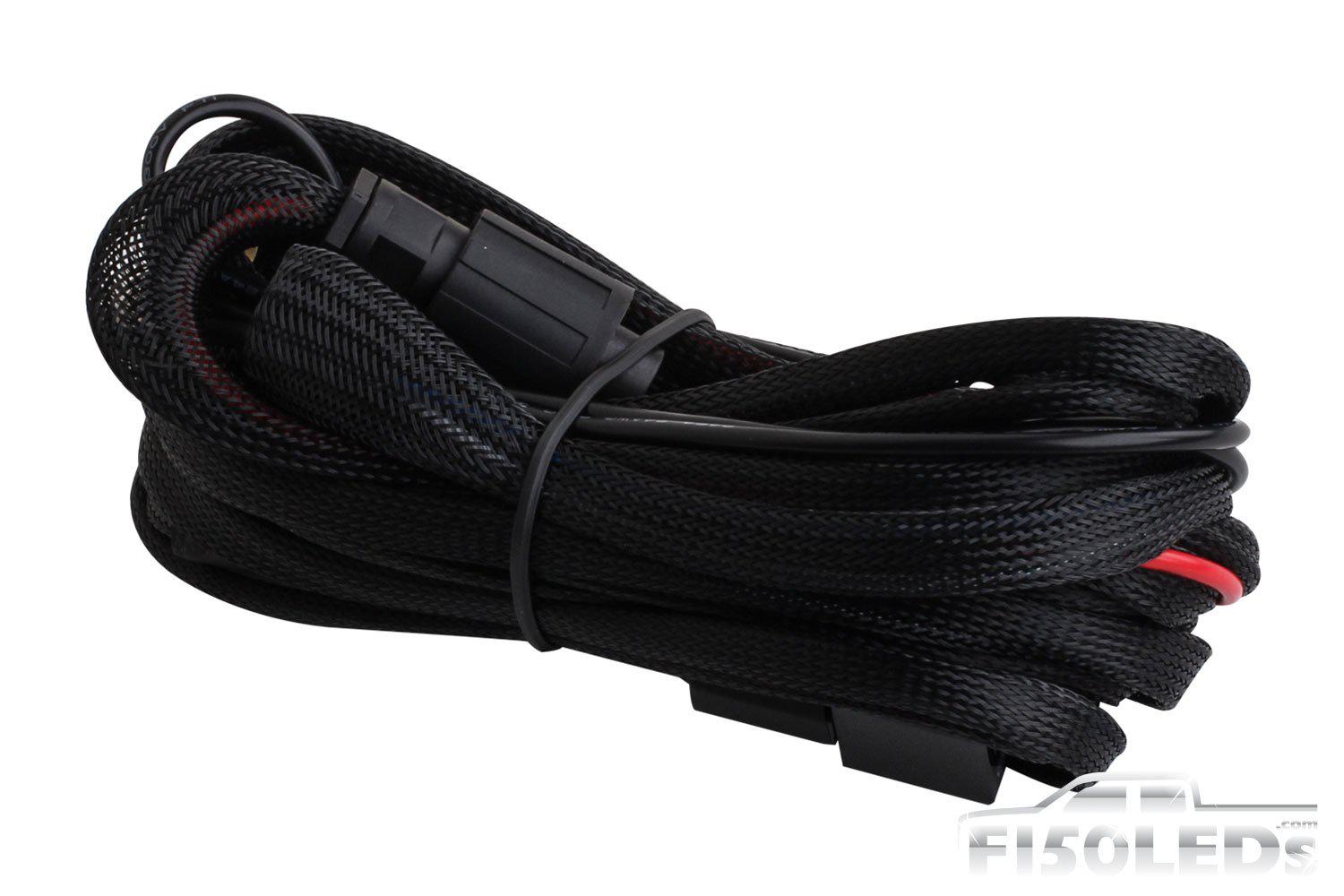

- Fully braided custom harness with built in relay

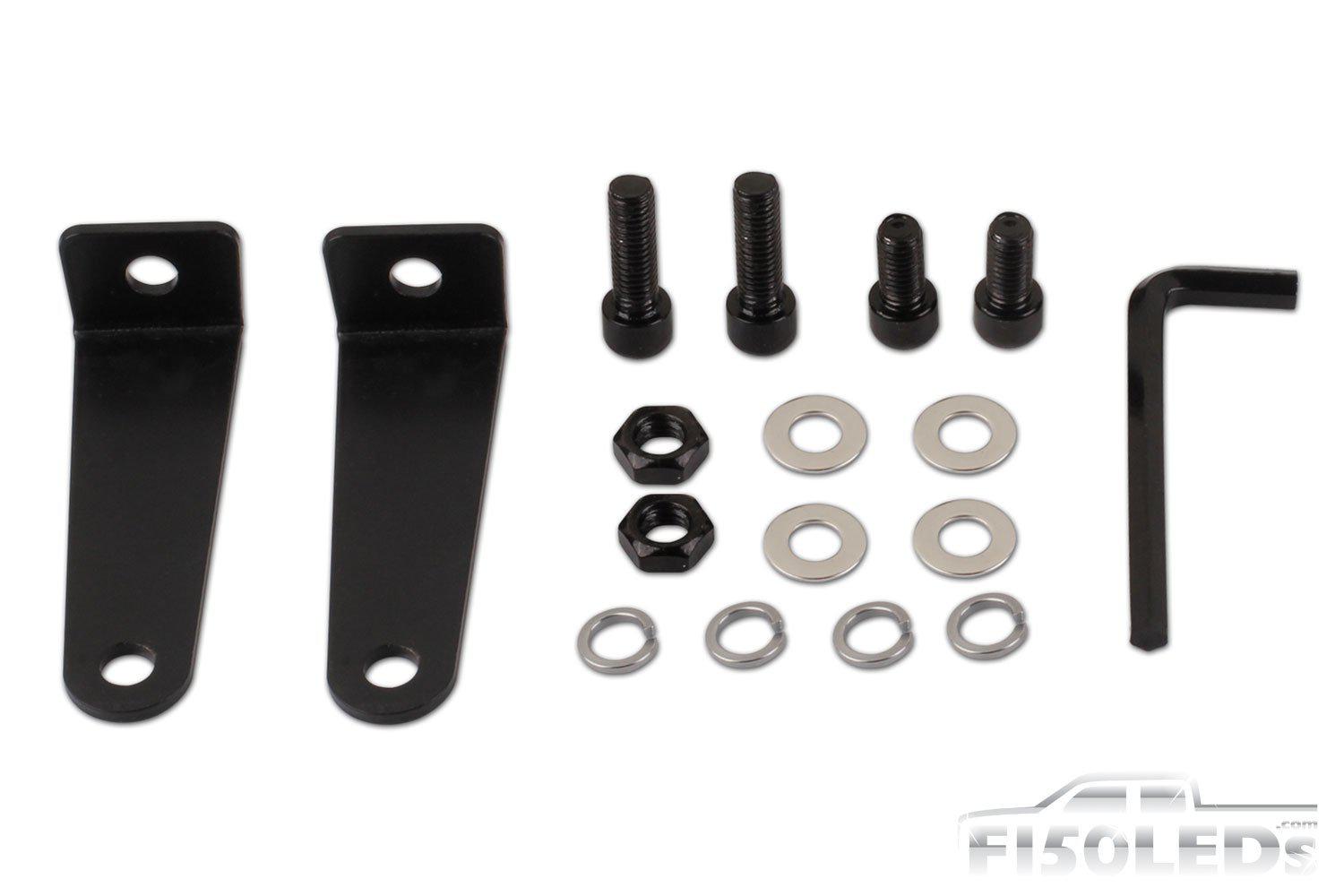

- All necessary mounting hardware & custom brackets

  • More Details

- CREE XTE 5W LEDs, each LED capable of approx 624 TRUE lumens

- TRUE Lumen Output: Multiply LED count by 624

- Voltage:9-60V DC

- TRUE Luminosity output: Approx. 12,000 lumens

- Waterproof rate: IP 68

- Color Temperature: 6500K

- Material:Diecast Aluminum-alloy Construction

- Lens material: PC

- Mounting Bracket: Stainless steel bracket

- Beam Pattern: Paladin Long Range Optic w/ Wide Light Display Arc

- Life rating:50,000 Hrs

- Dustproof shockproof & anti-corrosion

- Light Color Pure White Daylight(6500k)

California Residents - Warning: California's Proposition 65

  • Warranty

Each and every product we offer includes our Full 1-year warranty!


Instructions

Customer Reviews

4.9 Based on 18 Reviews
5 ★
89%
16
4 ★
11%
2
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

    PS
    08/20/2019
    Peter S.
    United States United States

    20” LED Light Bar

    Excellent Shines just as bright, if not brighter, than current LED headlights.

    RF
    05/01/2019
    Rich F

    Well worth it! easy install and BRIGHT!

    I recently purchased the Reverse light bar kit and the Paladin curved light bar for the lower intake install. Wow! What a difference! I can actually see where I am going when I back up now. Installation was super easy, watch the videos it is all laid out in simple easy to do steps. The front bar took about 45 min. and 20 minutes of that was digging around trying to find the right drill bit. The reverse bar took a little longer because the wiring harness is made long for different installations. I shortened my harness so had to solder and heat shrink the connections back together then re-tape them. Although I could have bundled the extra wire with a zip tie and tucked it up in the frame. One word of caution however on the front bar. Make sure all connections are tight before re-installing the front bumper pads. Otherwise there is no room to access the bolts afterwards. Ask me how I know...

    A F150LEDs.com Customer
    PG
    04/02/2019
    Paul G.
    United States

    Better than expected

    The install was ok - I watched the video a couple times because there were no directions in the box. One issue was the statement is made that you can use the existing hole if you choose to do so, not possible...there were two holes but they were huge and much wider than the required mounting brackets. Not a problem for me as I was prepared to drill holes to ensure I centered the light bar...however there may be some guys who do not have this capability and may be an issue for them. The light bar is AWESOME, this is so bright it is perfect. I'll be taking a long trip shortly so I'll see how it does as part of the trip will be in the dark. Great product, I will get another for my other truck.

    Paul G. verified customer review of 2009-14 F150 20 PALADIN 90W Curved Lower Intake LED Bar
    JE
    03/31/2019
    Jerry E.
    United States

    I love it

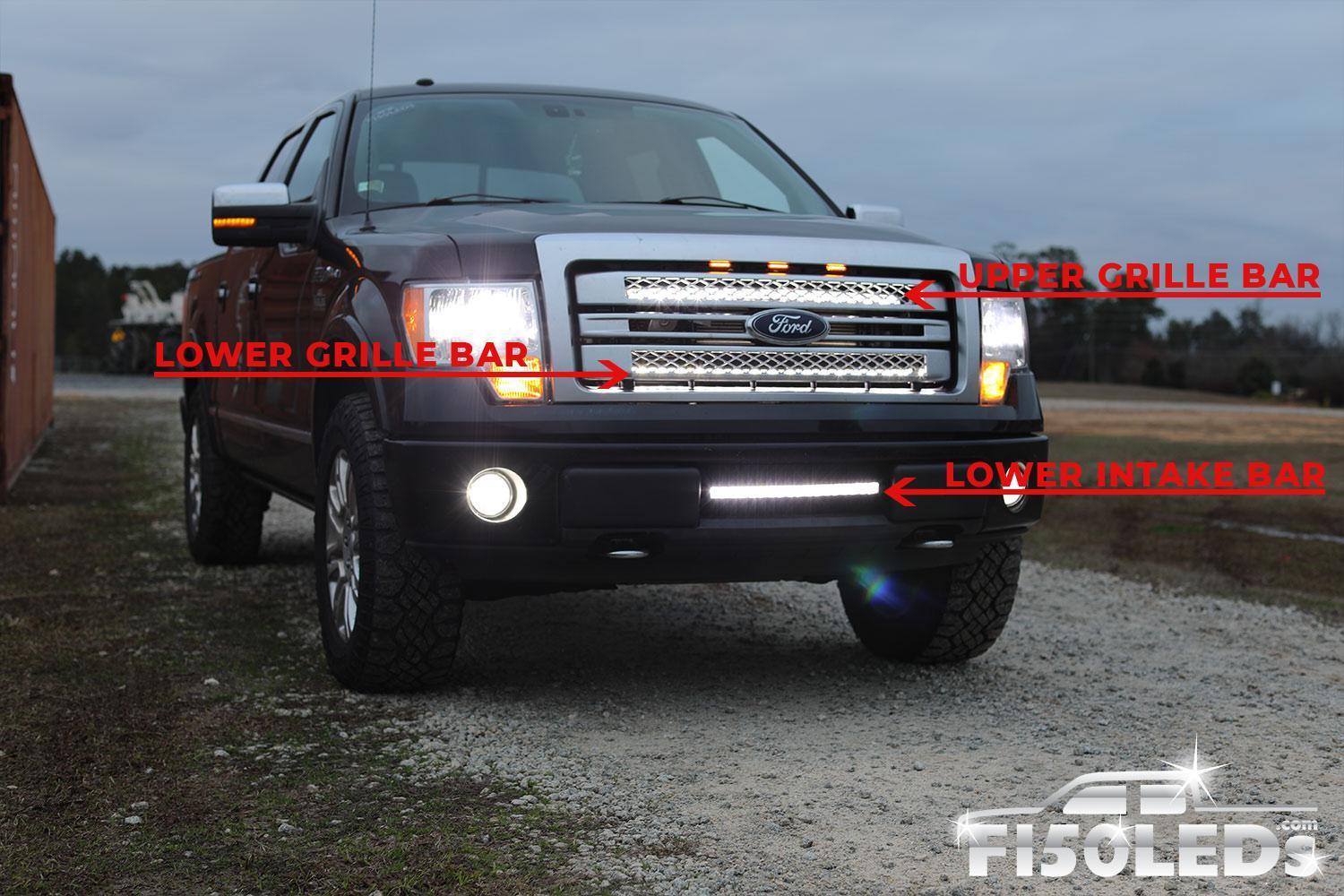

    I went all in got all 3 bars at once. Top , Mid and Lower. Install wasn't bad . I am not much of a installer but it works out great. even got the extra switch to control all 3 lights from one switch. I waited a few months to review it is holding up well. No issues at this point.

    GL
    03/26/2019
    Greg L.
    United States

    Lower intake LED

    Easy to install and super bright, clean light. Easily lights up any dark road or trail.
